U-shaped paper corner protector is a three-sided kraft paper channel that wraps a panel edge on the face, the thickness and the opposite face, so the exposed edge of MDF, plywood, doors, glass or metal sheet cannot be chipped, crushed or marked in transit. Bottom width runs 15-150 mm, side height 25-75 mm, thickness 2.5-5 mm, and every order is cut to your panel length. It is the profile buyers also search for as a U channel paper edge protector or a U profile paper edge protector.

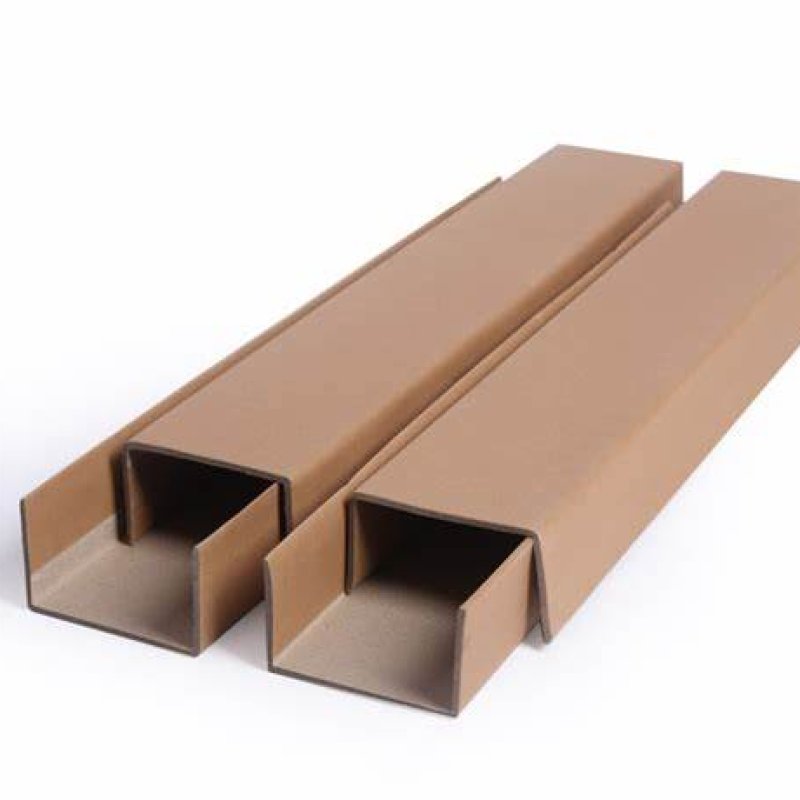

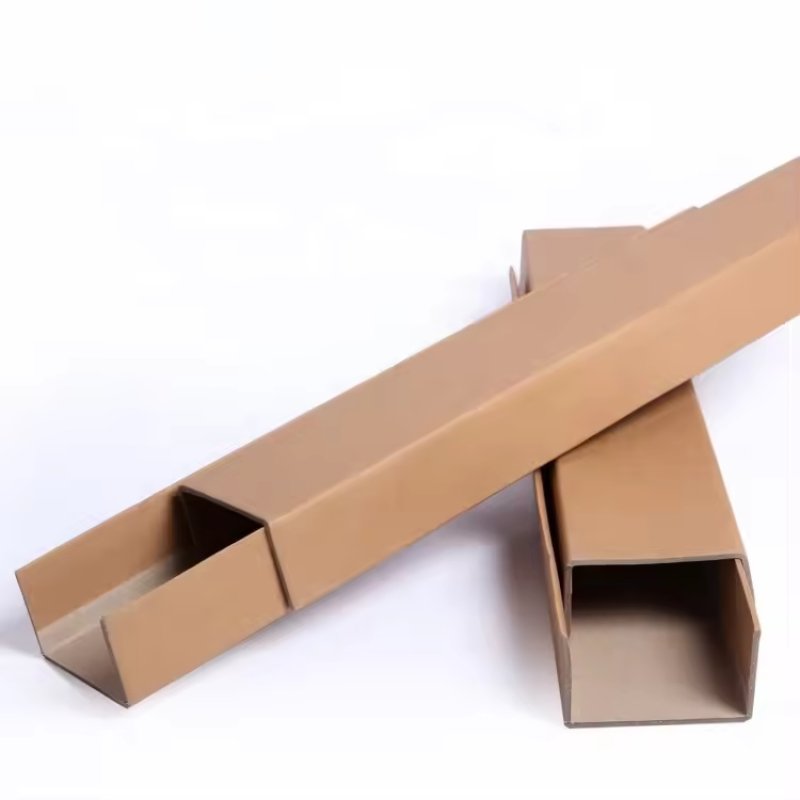

What Is a U-Shaped Paper Corner Protector?

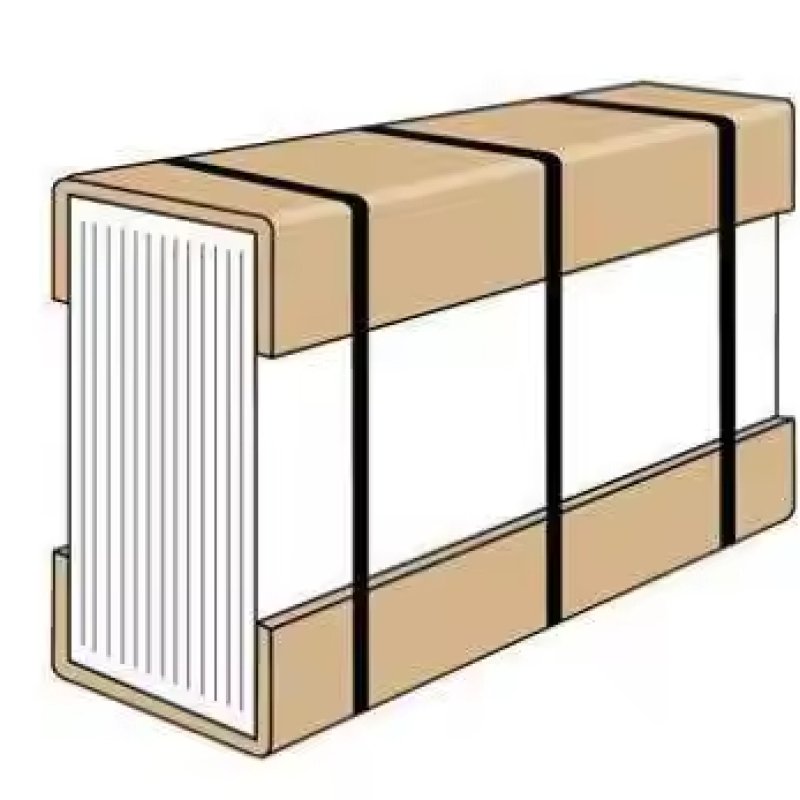

A U-shaped paper corner protector is a paper profile with three faces: a bottom face that sits across the full thickness of the panel, and two side faces that cover the top and bottom surface of the sheet. The panel slides into the channel, the paper takes every contact with the pallet, the strapping and the container wall, and the edge of the board never touches anything harder than kraft paper.

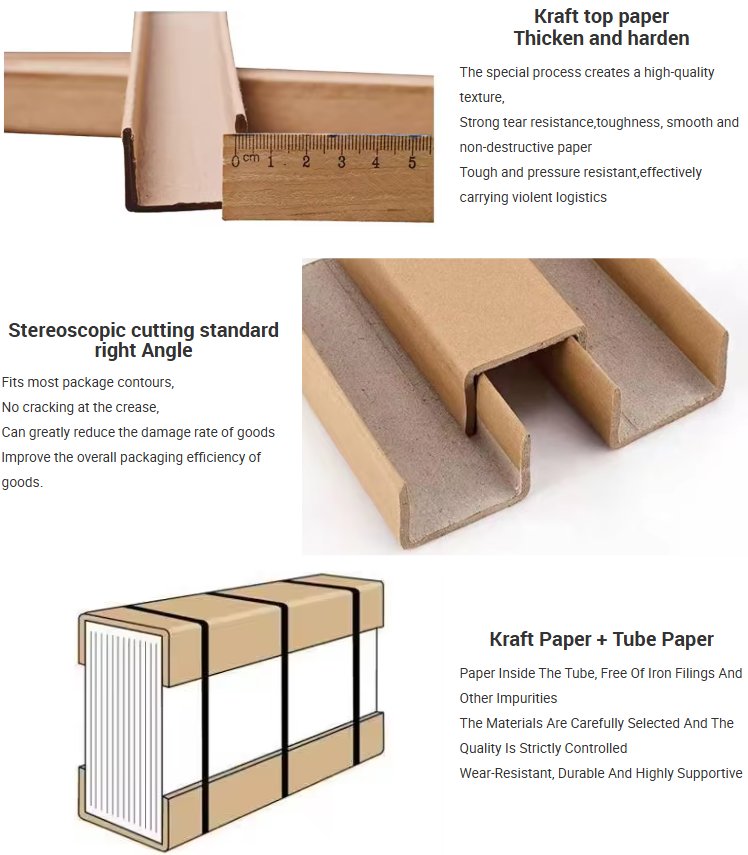

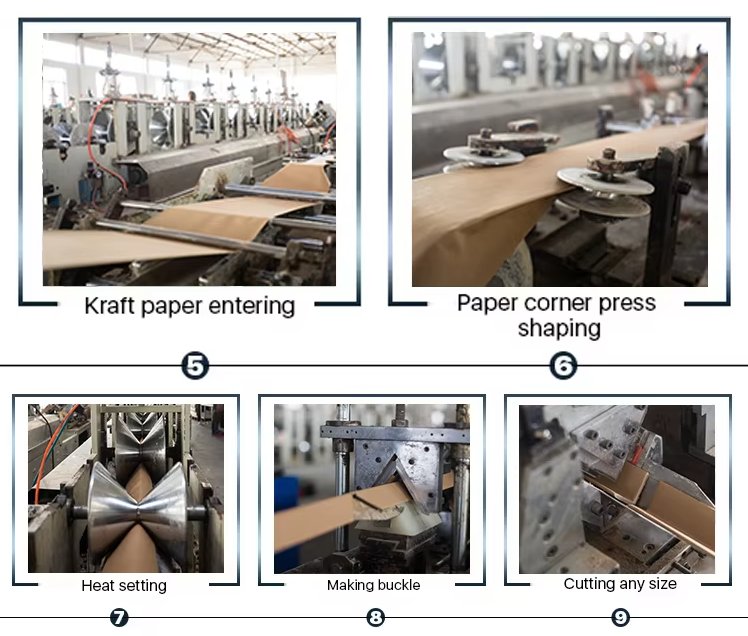

The body is laminated from kraft paper plies bonded with eco-friendly glue, then formed into a U profile while the adhesive is still flexible and cut to length once set. That is why the channel holds its shape and does not flatten when a strap is tensioned over it. Because the material is paper, the protector travels with the panel all the way to the customer and then goes into the same waste paper stream as the carton it arrived in.
Three sides, not two
The difference from a standard L-shaped angle board is the third face. An L profile protects the corner where two faces meet. A U profile goes one step further and grips the panel from both sides, so the sheet cannot slip out, the protector cannot drop off during handling, and the panel face beside the edge is protected from scratching as well as the edge itself from chipping.

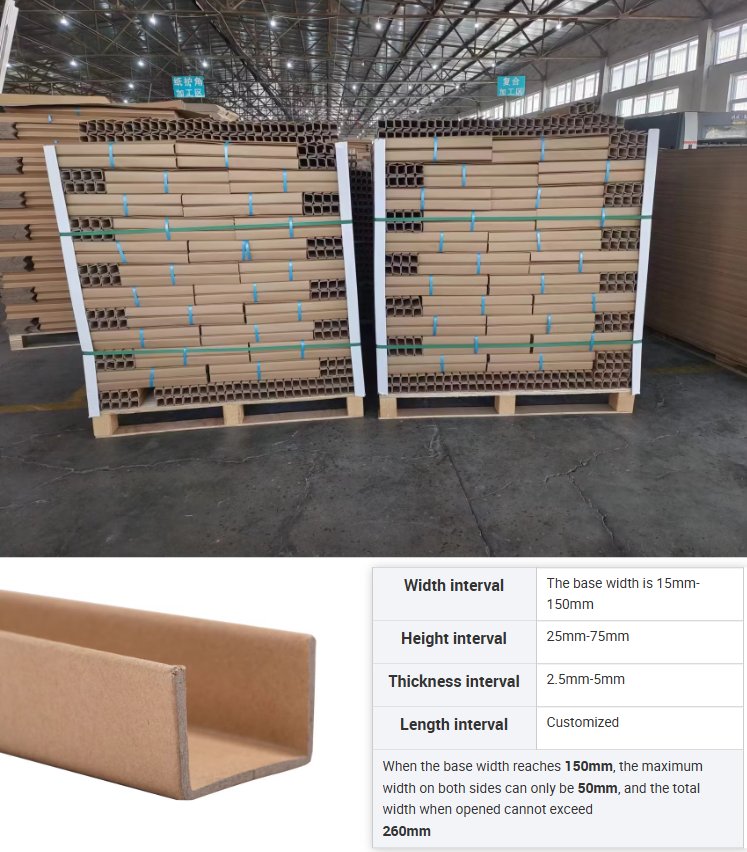

U-Shaped Paper Corner Protector Specifications
| Material | Kraft paper, roll paper, eco-friendly glue |
| Profile | U channel, three-sided, adhesion laminated |
| Bottom width | 15-150 mm, customizable |
| Side height | 25-75 mm, customizable |
| Thickness | 2.5-5 mm, customizable |
| Length | Any length, cut to order |
| Incision | Cut according to your requirement |
| Colour and print | White or kraft brown base, logo and text printable |
| MOQ | 3,000 meters |
| Daily output | 200,000 meters |
| Lead time | Shipment within 7 days of deposit |
| OEM and ODM | Available, including size, print and packing |
One limit to know before you specify: when the bottom width reaches 150 mm, each side can only be 50 mm wide, and the total opened width of the profile cannot exceed 260 mm. If your panel is thicker than that, tell us the thickness first and we will propose a two-piece or reinforced build instead of forcing a profile that will not sit flat.

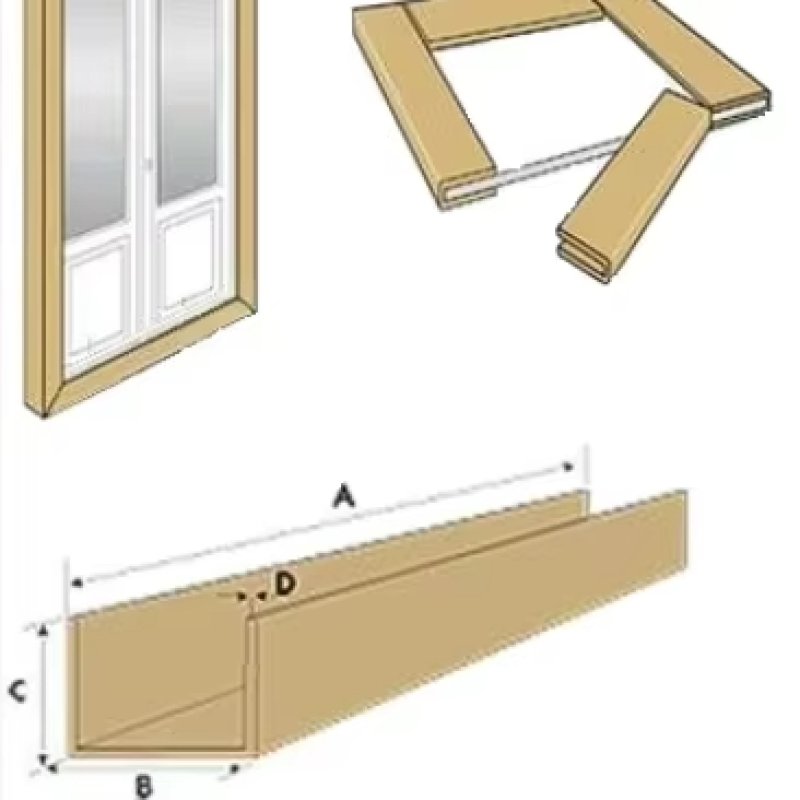

How to Measure a U-Shaped Paper Corner Protector
Four numbers are enough for a quotation, and getting them right the first time saves a sample round.
Inside width - measure the panel thickness, not the outside of the protector. Inside width should be the panel thickness plus 1-3 mm of clearance, so the channel slides on by hand but does not rattle. A 18 mm MDF panel takes a 20 mm inside width.
Side height - how far down each face you want protection. 25-40 mm is normal for pallet corners, 40-60 mm for door and panel edges that pass through automated handling, 60-75 mm when the sheet is strapped directly over the protector.
Thickness - 2.5-3 mm for light panels and PP strapping, 3-4 mm for standard MDF and plywood bundles, 4-5 mm where steel banding is used or where the load exceeds about one tonne.
Cut length - the panel height plus 30-50 mm, so the protector stands proud of the top sheet and takes the strap first.
Worked example: 18 mm MDF panels, 2,400 mm long, bundled 20 sheets high with two PET straps per bundle. Specification: inside width 20 mm, side height 50 mm, thickness 3 mm, cut 2,450 mm, natural kraft, unprinted, 4,000 meters. That is the full order instruction, and it can go straight into production.

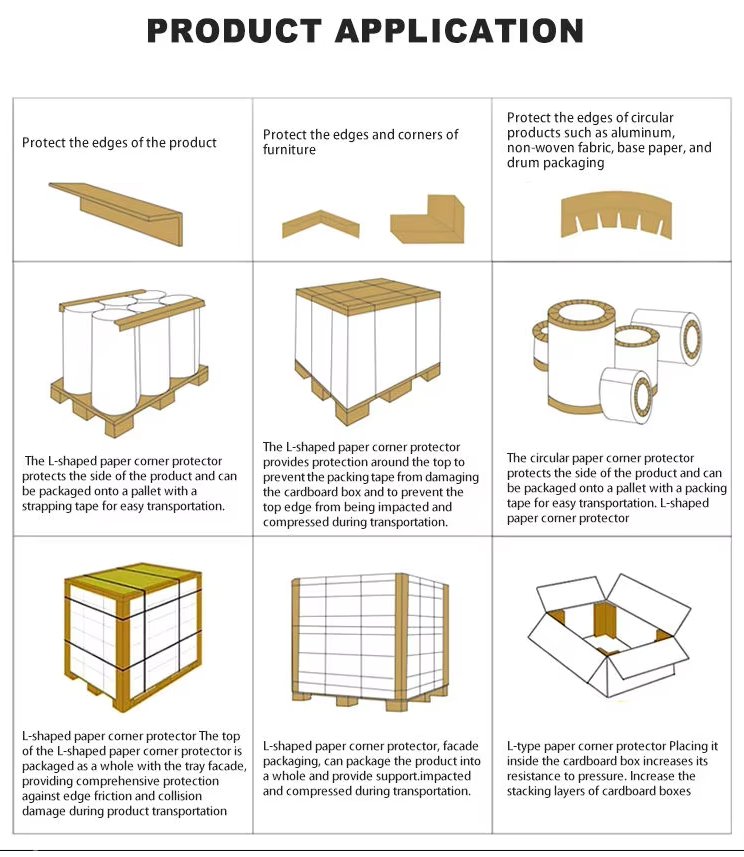

U Channel vs L Profile: Which One Do You Need?
| Point | U-shaped protector | L-shaped angle board |
| Faces covered | Three: edge plus both panel faces | Two: two faces at a corner |
| Holds itself on | Yes, the channel grips the panel | No, needs tape, strap or film to stay put |
| Best for | Panels, doors, glass, sheet metal, flat-pack boards | Cartons, pallet corners, crates, bundles |
| Weak point | Needs an accurate inside width | Can slide off a smooth panel edge |
If the load is a stack of sheets, the U profile almost always wins, because it stays on the panel while the operator walks the bundle to the wrapper. If the load is a cube of cartons on a pallet, the L profile is cheaper and does the job, and there is no point paying for a third face that touches nothing.
Where U-Shaped Paper Corner Protectors Are Used
MDF and plywood bundles - 20 mm inside width, 50 mm side height, protecting both faces where the bundle is clamped
Doors and door frames - full-height channels on the two vertical edges, so the door leaf is lifted by the protector and not by the skin
Furniture panels and flat-pack boards - prevents corner chipping and surface scratching in mixed export loads
Glass and mirror sheets - U profile with a clean cut edge, often combined with A-frames
Metal sheet and aluminium plate - 4-5 mm wall where steel banding crosses the edge
Plastic and composite panels - protects printed or coated faces from the strap and from the pallet deck
Stone and ceramic slabs - heavy build for edges that chip on impact rather than crush
General export crating - one profile that covers edges, faces and the strapping line in one part
Width, Height and Thickness: How to Choose
Inside width is a fit dimension, so it should be measured, not guessed. Side height is a cost decision: every extra 10 mm of height is extra paper on both faces, so buy the coverage you actually need rather than the tallest profile in the catalogue. Thickness is a strength decision and should follow the strap, not the habit of the buyer.
As a working rule: PP strapping on light panels takes 2.5-3 mm, PET strapping on standard bundles takes 3-4 mm, and steel banding or loads above one tonne take 4-5 mm. Where the panel itself is thin, a wider leg spreads the load better than a thicker wall, because the paper has more area to work with.
Printing, Incision and Customization
Printing goes directly onto the paper in one or two colours, on a white or kraft brown base, so the protector becomes a branding surface instead of waste. Customers commonly print the company logo, the panel size in millimetres, a handling icon or a QR code that resolves to a batch record.
Incision is cut to your requirement: clean square cuts for automated lines, angled cuts where the profile meets a door corner, or pre-cut short lengths that the packing station snaps to size. Because the profile is made to order, the inside width, side height, thickness and print can all be set in the same production run, which is why a custom size U channel usually costs less than adapting a stock size on site.

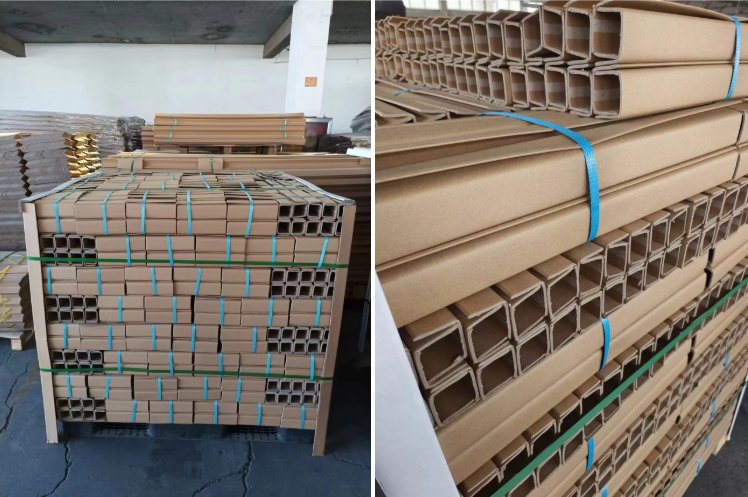

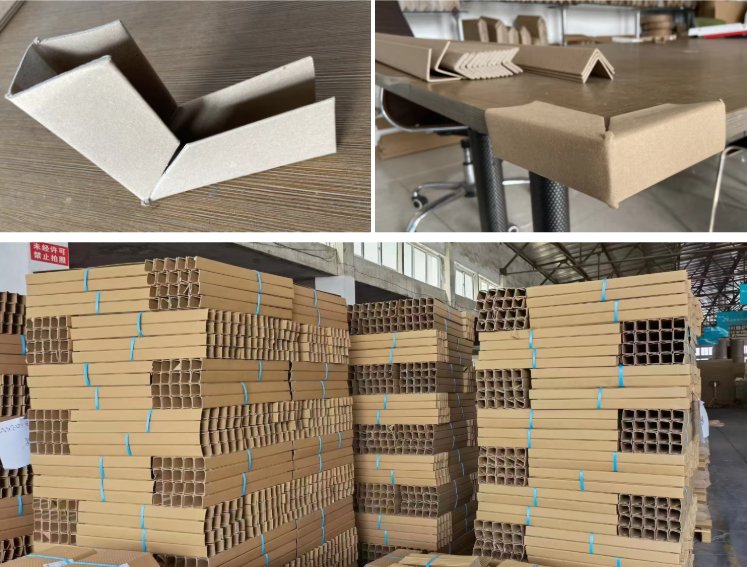

Packing, MOQ and Lead Time
Orders ship in bundles or palletized cartons, banded and wrapped so the profiles arrive straight. The minimum order is 3,000 meters, and the line runs 200,000 meters a day, so a repeat program and a first trial order can be handled by the same factory without a second supplier. Shipment is normally within 7 days of deposit, and printed or fully customized runs are confirmed against the artwork date.
Why Buyers Choose Hengnice Packing
Hengnice Packing makes paper edge protection for export loads, and every order is built to the buyer dimension instead of the nearest stock size. For U channel work that matters more than for any other profile, because a channel that is 2 mm too narrow will not fit the panel and a channel 2 mm too wide will fall off in the container.
Inside width, side height and cut length set from your drawing or your sample
Kraft paper and roll paper, eco-friendly glue, fully wrapped with no exposed raw edge
Printed logo, size marking and handling icons on white or kraft base
Sample before the bulk run on every new profile
English-speaking sales contact who quotes from four numbers without a back-and-forth
Frequently Asked Questions
Q: What is a U-shaped paper corner protector?
A: It is a three-sided kraft paper channel that slides over a panel edge and covers the edge plus both faces, protecting the sheet from chipping, crushing, scratching and strap marks during handling and shipping.
Q: What is the difference between a U-shaped and an L-shaped edge protector?
A: An L profile covers two faces at a corner and has to be taped or strapped down. A U profile covers three faces, grips the panel by itself, and also protects the surface next to the edge.
Q: How do I measure the inside width?
A: Measure the panel thickness, then add 1-3 mm of clearance. An 18 mm panel takes a 20 mm inside width. Send the panel thickness and we will confirm the channel size.
Q: What is the largest size you can make?
A: Bottom width 15-150 mm and side height 25-75 mm. When the bottom width reaches 150 mm, each side is limited to 50 mm, and the total opened width cannot exceed 260 mm.
Q: What thickness do I need for steel strapping?
A: 4-5 mm for steel banding, and 3-4 mm for PET or PP strapping on normal panel bundles. Tell us the strap type and the bundle weight and we will confirm.
Q: Is the protector recyclable?
A: Yes. The product is kraft paper with eco-friendly glue, so it recycles with normal waste paper and needs no separation step.
Q: Can our logo be printed on the U channel?
A: Yes, in one or two colours on a white or kraft base, after legal authorization of the trademark. Send vector artwork and we return a print proof before production.
Q: What is the minimum order and the lead time?
A: 3,000 meters, with shipment within 7 days of deposit for standard specifications.
Q: Do you provide samples?
A: Yes. We provide samples of the profile you specify and you cover the express cost, so the channel can be tested on your own panel before the bulk order.
Q: Do you export, and on what terms?
A: Yes, on EXW, FOB or CIF terms. Give us the destination port and we will quote the landed option next to the ex-works price.
Request a U-Shaped Paper Corner Protector Quote
Send four numbers - inside width, side height, thickness and cut length - plus quantity in meters and whether you need printing. We return the price, the packing plan and the delivery date. Email mona@hengnicepacking.com with the subject line U-shaped paper corner protector plus your panel thickness.
