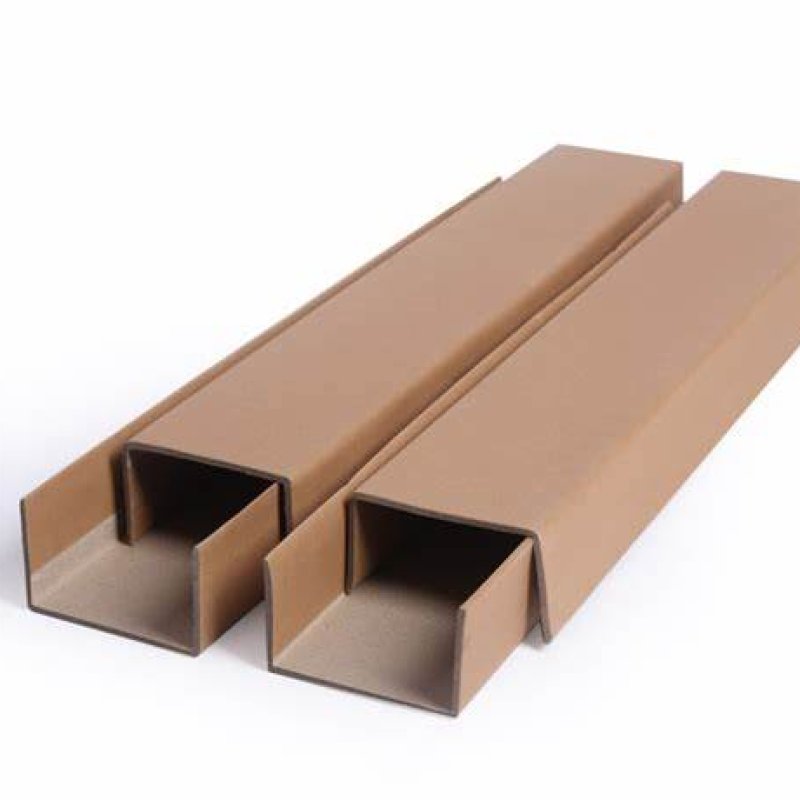

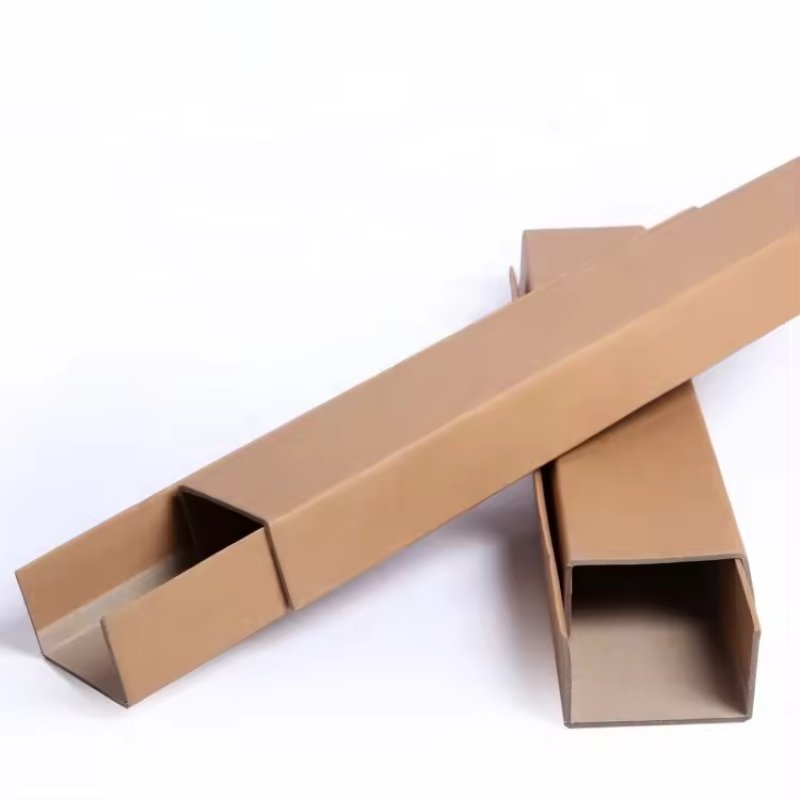

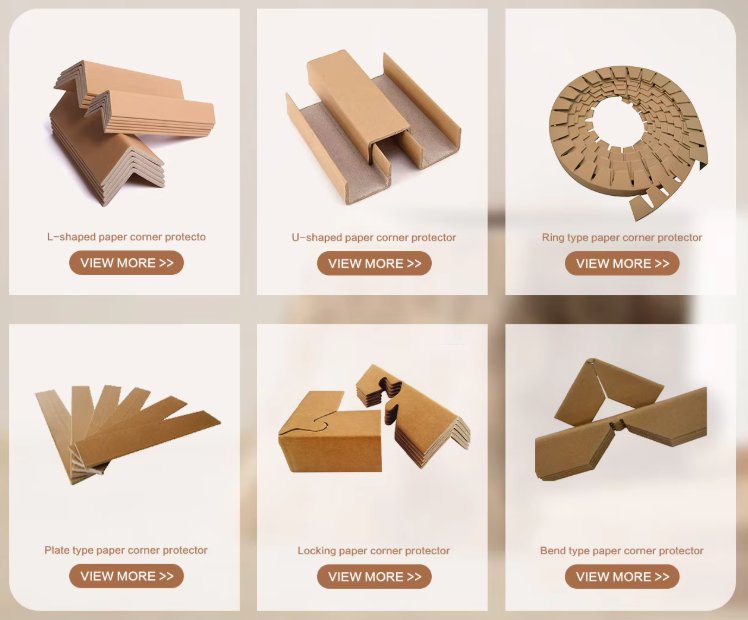

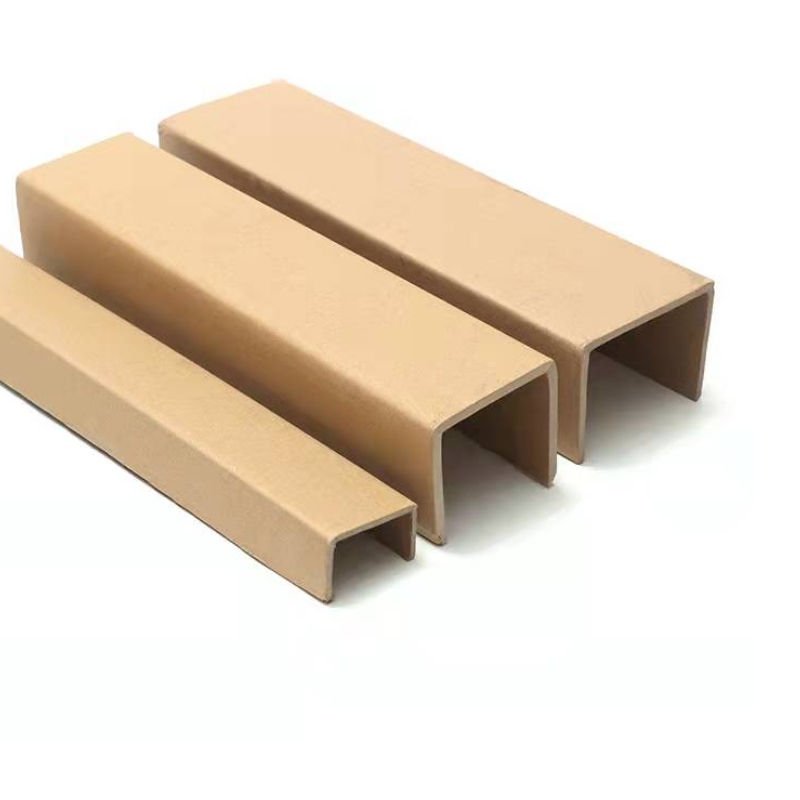

U-channel paper edge protector is a three-sided kraft profile that grips a sheet on both faces and covers the cut edge in one part. Width 15-150 mm across the bottom, side height 25-75 mm, thickness 2.5-5 mm, any length. It is the profile used on sheet metal, aluminium plate and glass, where a two-sided angle board would slide off a smooth surface before the strap is even tensioned.
Why a Third Face Matters on Metal and Glass

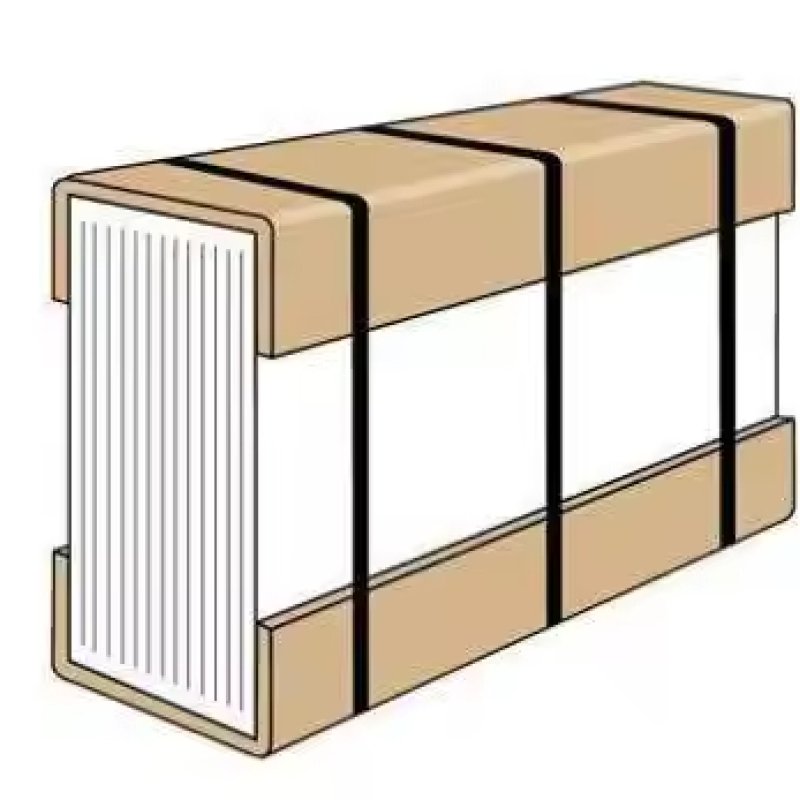

An L-shaped board sits on a corner and depends on a strap, tape or film to stay there. On a painted steel sheet or a glass pane there is nothing for it to grip, so it slides. A U-channel closes around the sheet: the bottom face spans the thickness, the two sides clamp both surfaces, and friction holds the part in place while the operator moves on to the next corner.
That grip also changes what gets protected. The edge of a metal sheet is the sharpest part of the load, and it is the part that cuts through stretch film, scores the sheet below it in a stack, and marks whatever it touches. Covering the edge with paper removes the sharp line entirely, which is why the U profile is standard on aluminium, stainless and coated steel.

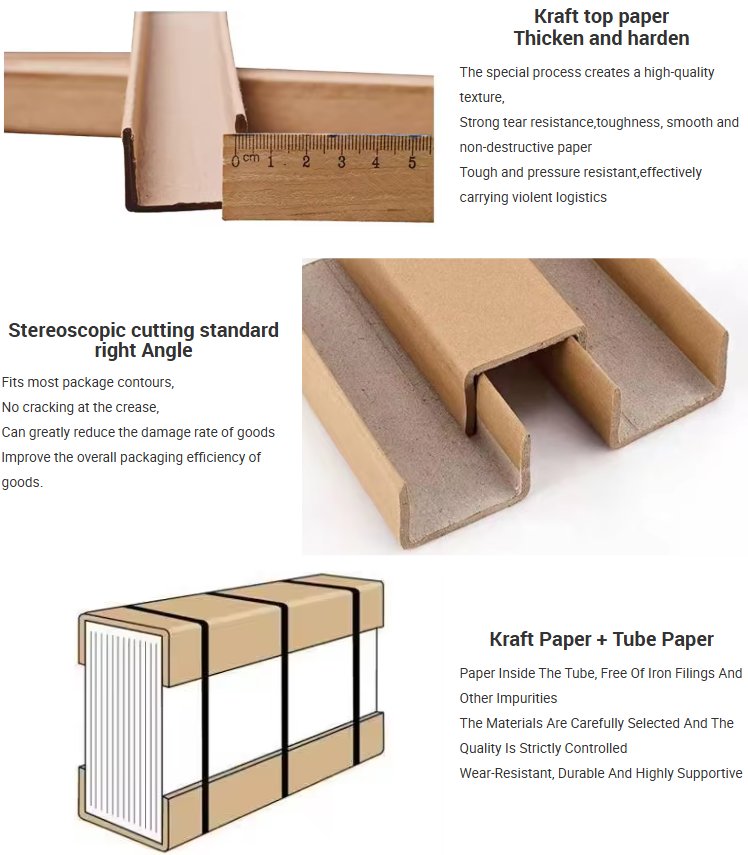

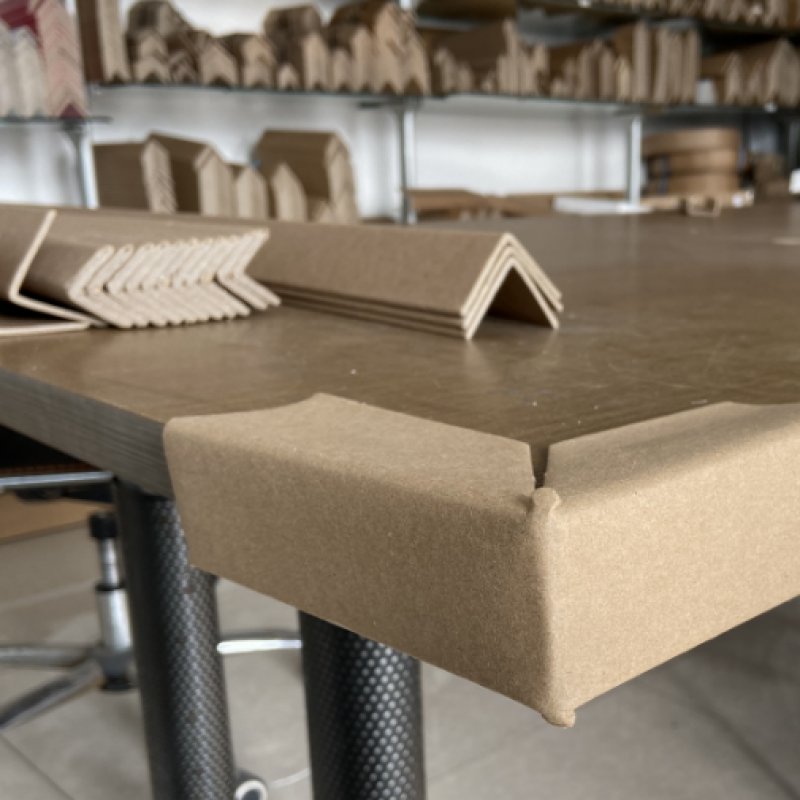

How the channel holds without adhesive
The fit does the work. Inside width is sized 1-3 mm above the sheet thickness, so the channel slides on by hand but cannot fall off. The paper has enough spring in the fold to press back against both faces, and the two legs add stiffness at the edge. No glue, no staple, nothing to remove at the far end - the whole part recycles with the packaging.

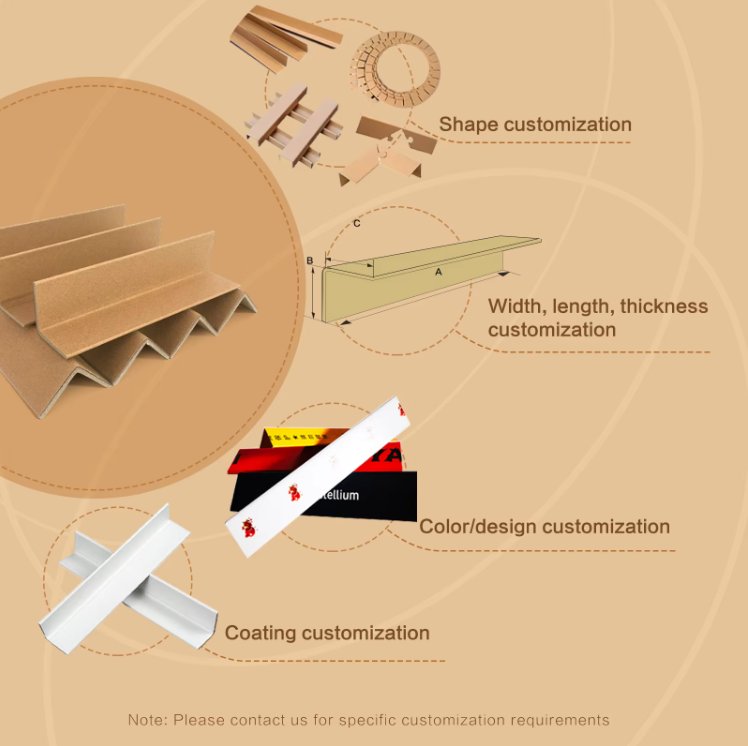

U-Channel Paper Edge Protector Specifications
| Profile | U channel, three-sided, 90 degree inner angle |
| Material | Kraft paper, roll paper, eco-friendly glue |
| Bottom width | 15-150 mm, customizable |
| Side height | 25-75 mm, customizable |
| Thickness | 2.5-5 mm, customizable |
| Length | Any length, cut to order |
| Incision | Cut to your requirement |
| Colour and print | White or kraft brown, logo and text printable |
| MOQ | 3,000 meters |
| Daily output | 200,000 meters |
| Lead time | Shipment within 7 days of deposit |
| OEM and ODM | Available, including width, height and print |

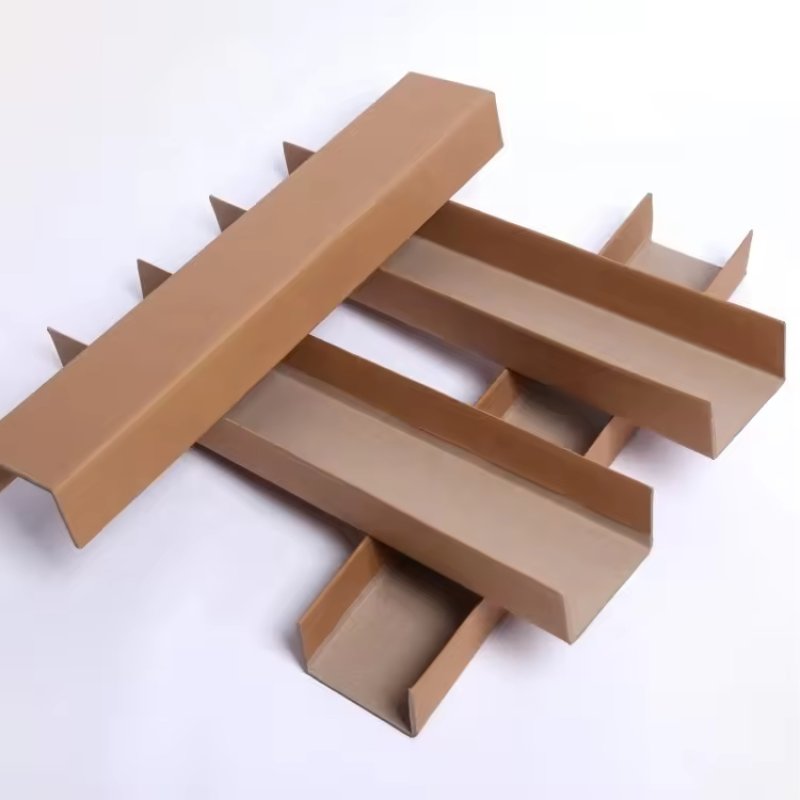

The 260 mm Limit, and How to Work Inside It

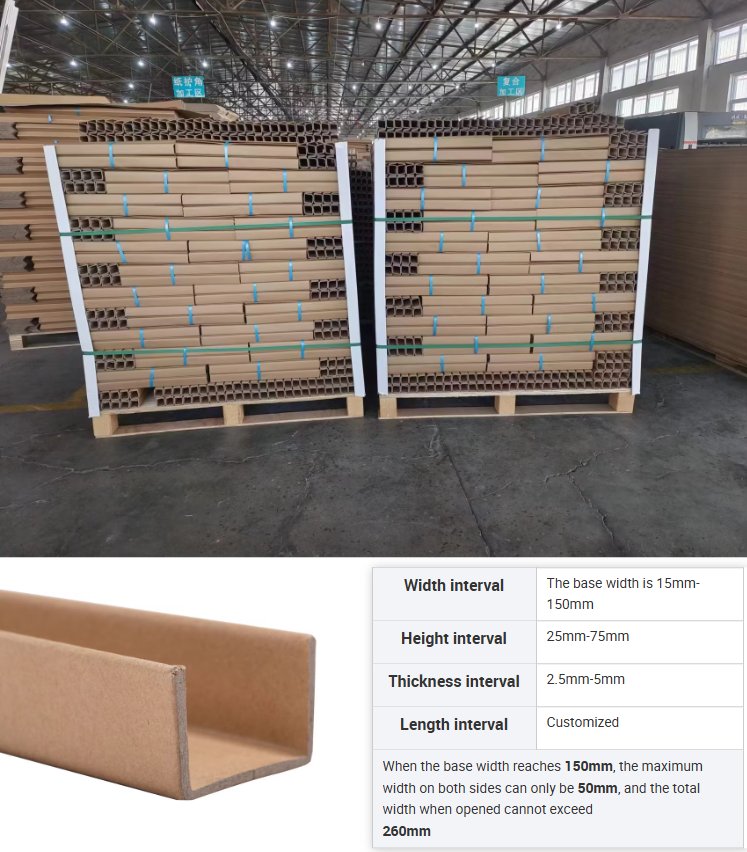

There is one structural rule on this profile: when the bottom width reaches 150 mm, each side can only be 50 mm wide, and the total opened width of the profile cannot exceed 260 mm. That is a material limit, not a commercial one - beyond it the fold cannot hold the shape flat on both faces, and the channel bows away from the sheet.
For a sheet thicker than about 140 mm, do not force the profile. Two options work: a two-piece build, where a flat strip is taped to each face and a folded edge cover is added, or a wider bottom with shorter sides plus edge tape. Both are quoted from a drawing rather than from the standard list, and both are usually cheaper than an oversized channel that arrives warped.
How to Size the Channel to a Sheet
- Inside width - the sheet thickness plus 1-3 mm. A 3 mm aluminium sheet takes a 5 mm channel; a 19 mm glass laminate takes 20-21 mm.
- Side height - how much of each face you want covered. 25-40 mm protects the edge zone; 50-75 mm also protects the face where a strap or a clamp bears.
- Thickness - 2.5-3 mm for light sheets and PP strapping, 3-4 mm for standard metal bundles, 4-5 mm where steel banding crosses the edge.
- Cut length - the sheet width or height plus 20-40 mm, so the channel overhangs at both ends.
Worked example: 2 mm aluminium sheets, 1,250 x 2,500 mm, bundled 30 high with steel banding. Specification: bottom width 5 mm, side height 50 mm, thickness 4 mm, cut 1,300 mm, natural kraft, 6,000 meters. That is a complete order instruction.
Where U Channels Are Used
- Sheet metal and plate - a paper barrier between a sharp edge and the strap, the pallet and the sheet below
- Aluminium and stainless - protects coated and brushed surfaces from marking as well as the edge from denting
- Glass and mirror - a clean-cut channel that grips without adhesive, so nothing has to be scraped off
- Plastic and composite sheets - protects printed or laminated faces during banding

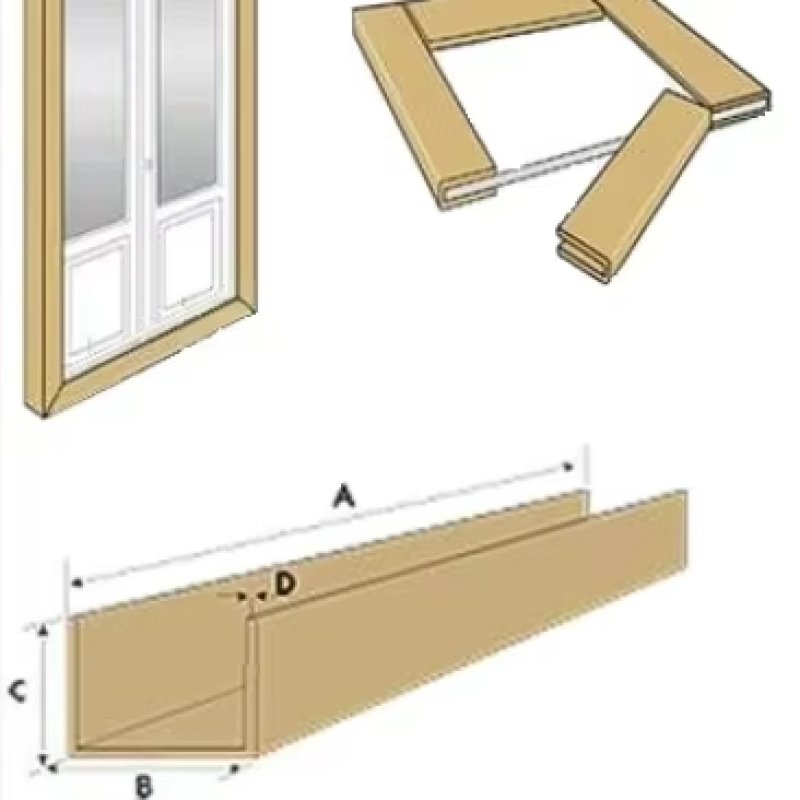

- Doors and frames - a full-height channel on the vertical edges
- Panel bundles in transit - the profile stays on while the bundle is tilted and loaded

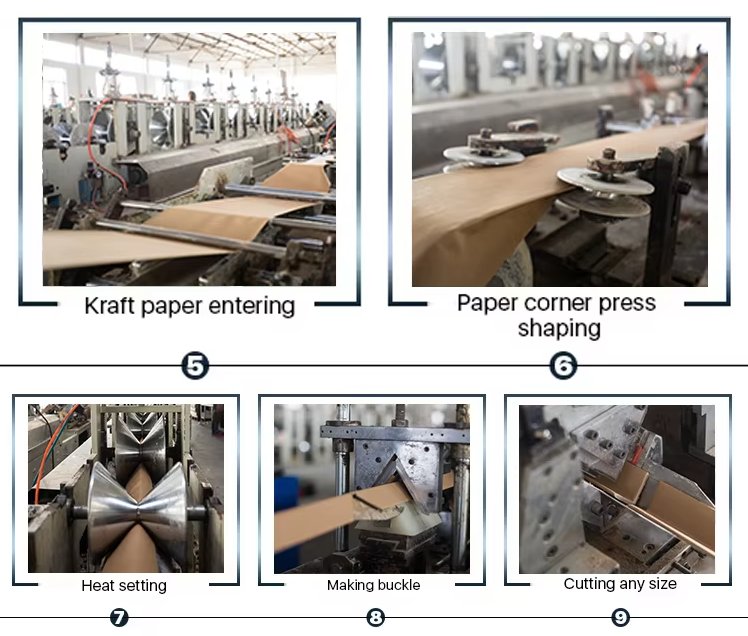

Printing, Cutting and Packing
Printing runs in one or two colours on white or kraft base: brand, sheet thickness, alloy or grade code, or a handling icon. On metal and glass accounts the most useful print is usually a thickness or grade marking, because the channel then doubles as a packing check.

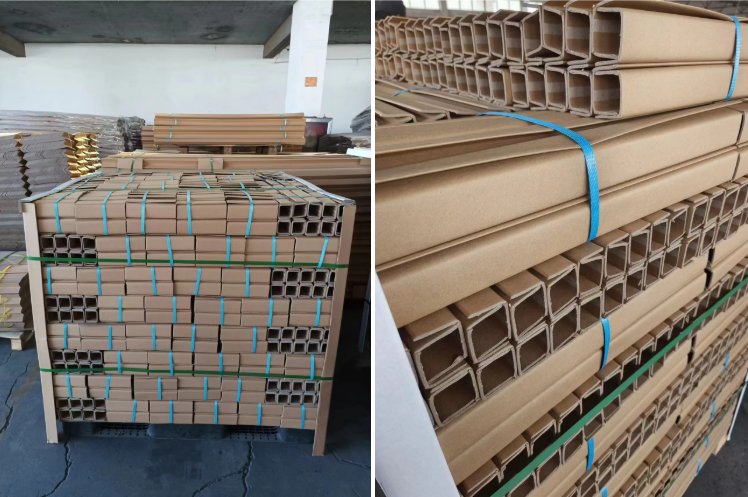

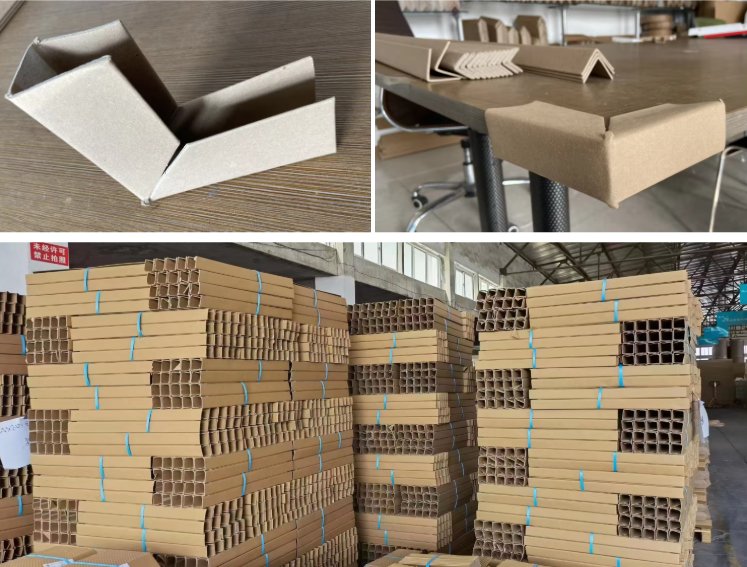

Channels ship in bundles or palletized cartons, banded and wrapped, normally within 7 days of deposit. Cut lengths, angled ends and pre-cut short pieces for packing stations are all available on the same run.
Frequently Asked Questions
Q: What is a U-channel paper edge protector?
A: It is a three-sided kraft profile that grips a sheet on both faces and covers the cut edge in one part, used on metal, glass and panel edges.
Q: How is it different from an L-shaped protector?
A: An L profile covers two faces and needs tape or a strap to stay on. A U channel covers three faces and holds itself on the sheet by fit alone.
Q: How do I measure the inside width?
A: Measure the sheet thickness and add 1-3 mm of clearance. A 3 mm sheet takes a 5 mm channel.
Q: What is the maximum size?
A: Bottom width 15-150 mm and side height 25-75 mm; at 150 mm bottom each side is limited to 50 mm, and the total opened width cannot exceed 260 mm.
Q: What if my sheet is thicker than the limit?
A: We quote a two-piece build - flat strips on each face plus a folded edge cover - rather than an oversized channel that will not sit flat.
Q: What thickness for steel banding?
A: 4-5 mm, with a 50-75 mm side height so the band bears on paper rather than on the sheet edge.
Q: Is it recyclable?
A: Yes, kraft paper and eco-friendly glue, with no adhesive or plastic to separate.
Q: What is the MOQ and lead time?
A: 3,000 meters, with shipment within 7 days of deposit for standard specifications.
Request a U-Channel Quote
Send the sheet thickness, the side height you want, the cut length, the strap type and the quantity in meters. We return the price, a channel drawing and the delivery date. Email mona@hengnicepacking.com with the subject line U-channel paper edge protector plus your sheet thickness.
