Ring Paper Corner Protector: Circular Paper Edge Guard for Coils

PRODUCT DETAILS

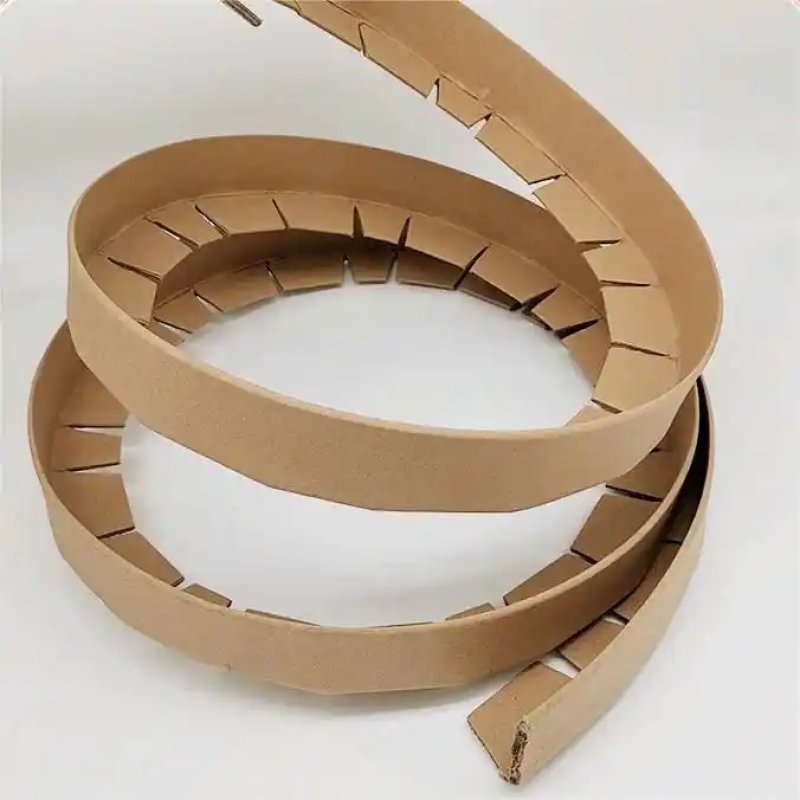

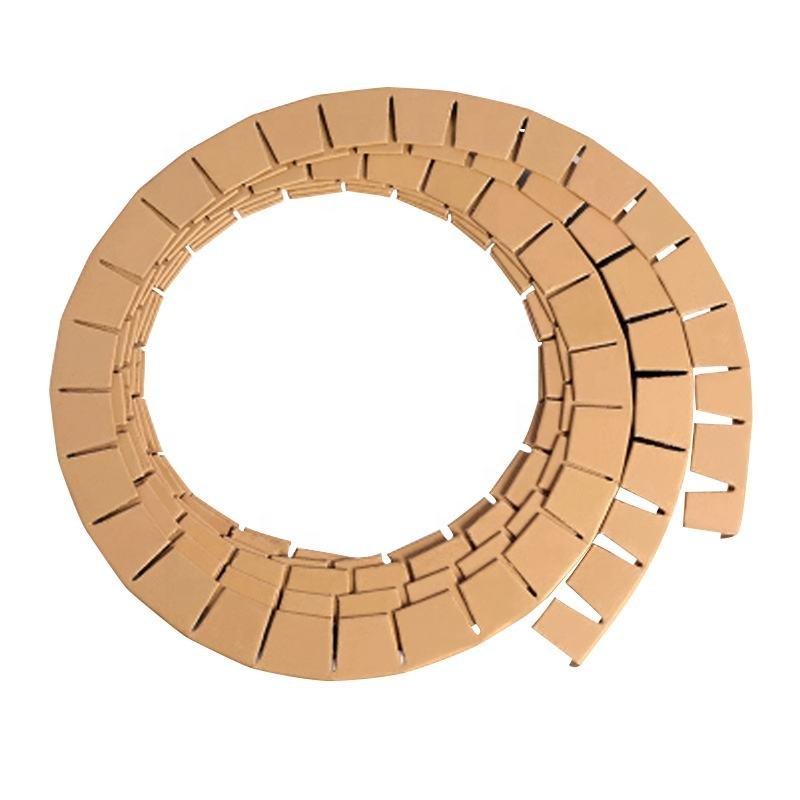

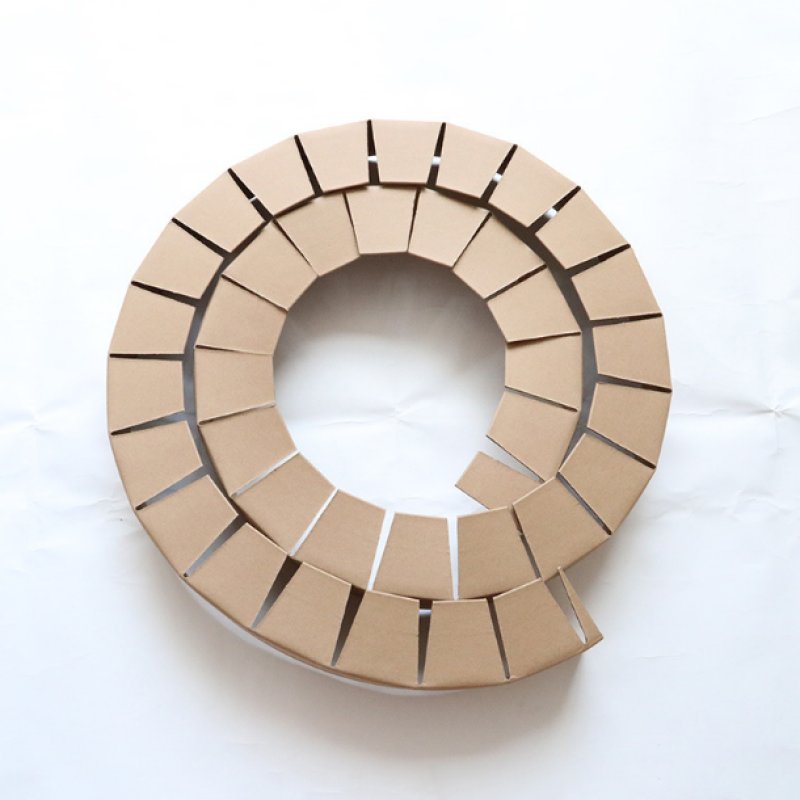

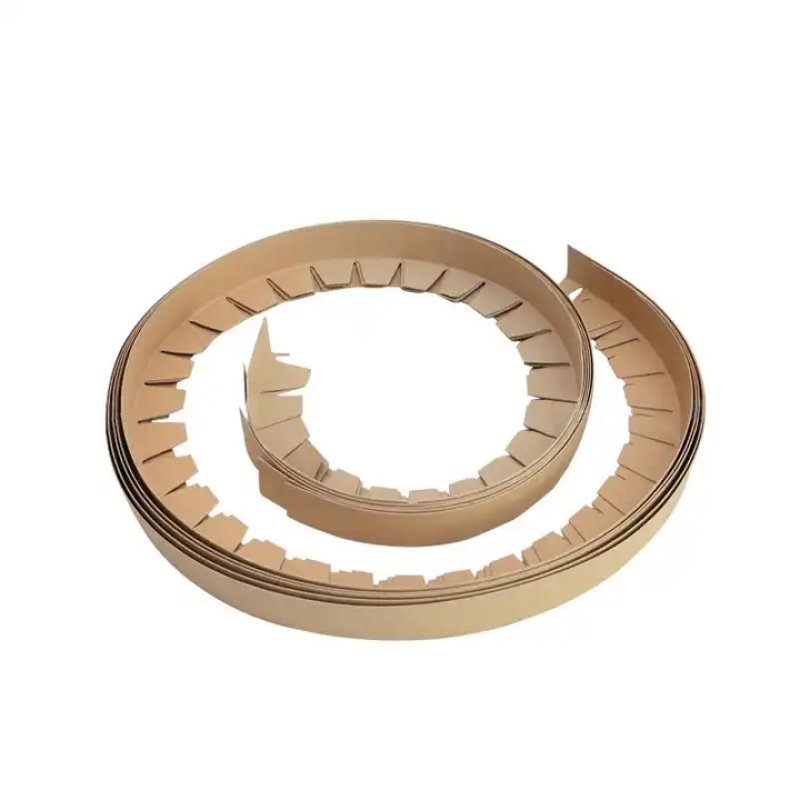

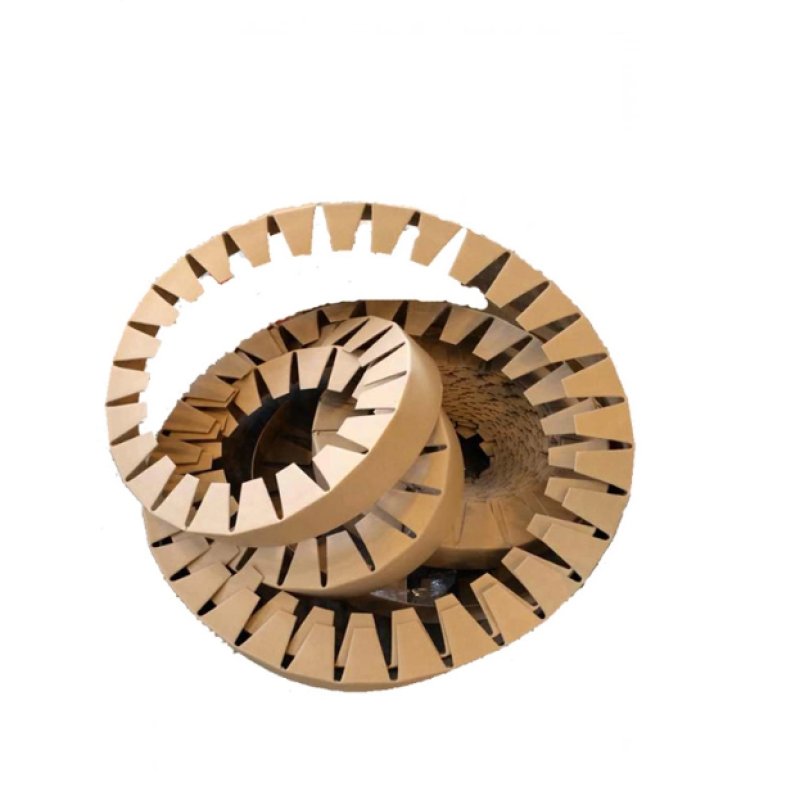

Ring paper corner protector is a circular kraft paper edge guard, laminated from multiple plies and formed into a ring that wraps the round edge of a coil, reel or bundled load. It spreads steel, PET and PP strap tension across the full width of the edge, so the rim is not crushed, cut or scuffed during handling and sea freight. Width 40-100 mm, thickness 2.5-5 mm, any length, MOQ 3,000 meters, OEM and custom printing available.

ring paper corner protector

ring paper corner protector - circular paper edge guard

ring paper corner protector for coils and reels

ring paper corner protector

ring paper corner protector - circular paper edge guard

ring paper corner protector for coils and reels

ring paper corner protector

ring paper corner protector - circular paper edge guard

ring paper corner protector for coils and reels

ring paper corner protector

ring paper corner protector - circular paper edge guard

ring paper corner protector for coils and reels

ring paper corner protector

ring paper corner protector - circular paper edge guard

ring paper corner protector for coils and reels

ring paper corner protector

ring paper corner protector - circular paper edge guard

ring paper corner protector for coils and reels

ring paper corner protector

ring paper corner protector - circular paper edge guard

What Is a Ring Paper Corner Protector Used For?

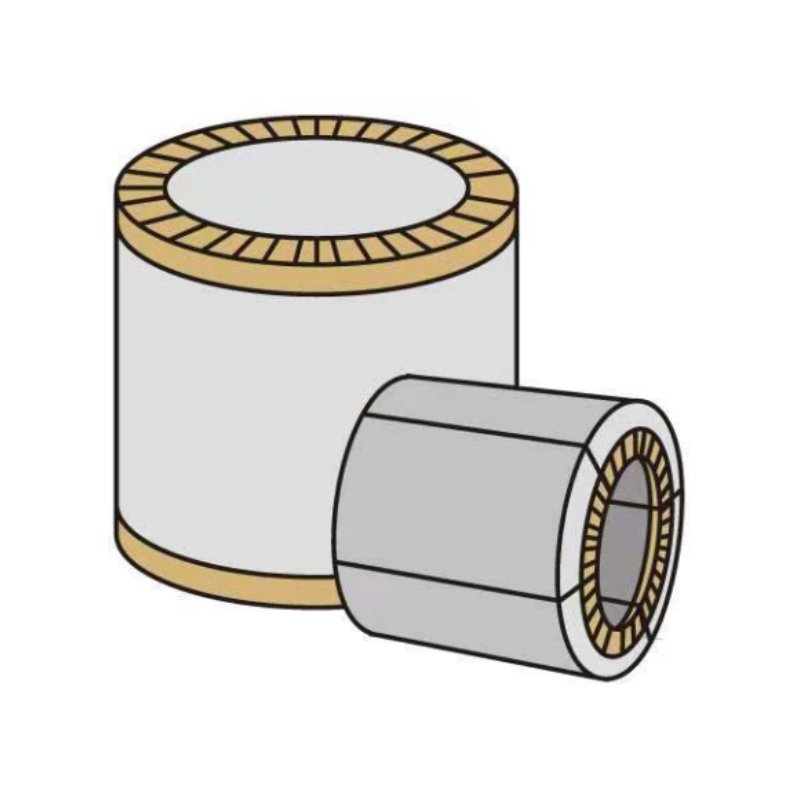

A ring paper corner protector is used wherever a round or cylindrical load has to be strapped, stacked or moved without damaging its edge. The ring sits over the coil rim or reel edge, the strap passes over the paper instead of the product itself, and the clamping force is distributed across the full 40-100 mm width of the board instead of a single line of contact.

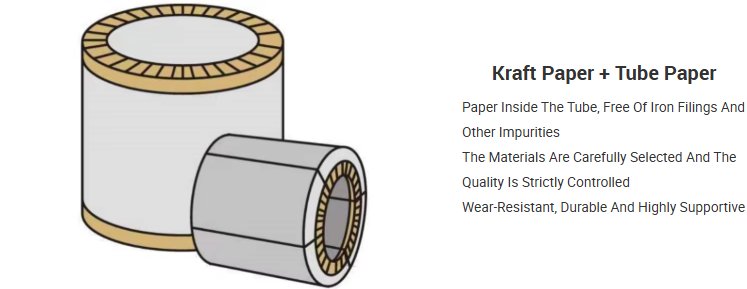

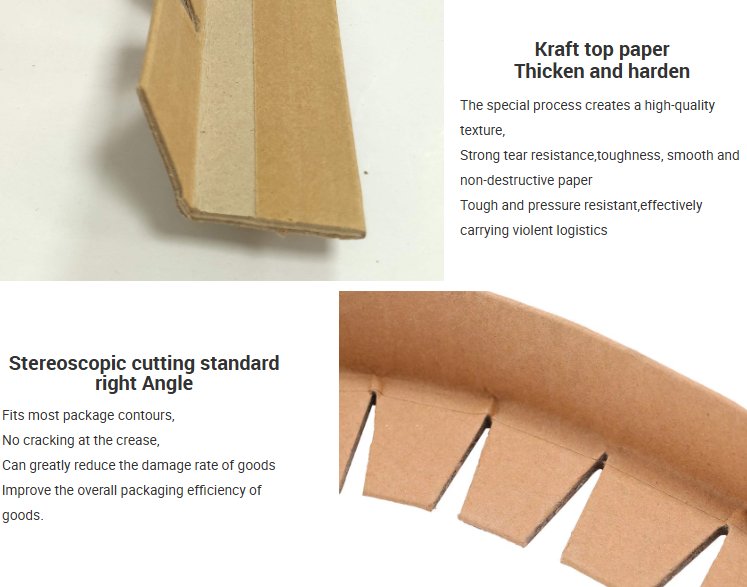

The profile is formed from kraft paper plies bonded with eco-friendly glue, so it is rigid along the ring but still soft enough to absorb impact. It is fully wrapped with no exposed raw edge, and it is recyclable in the same waste paper stream as the cartons and reels it protects.

Why use a ring shape instead of a straight L profile?

A straight edge protector has to be bent by hand around a curved edge, and the bend usually lifts the board off the product exactly where protection is needed most. A pre-formed ring follows the circumference of a coil or reel without gaps, so strap tension stays even all the way around and the board does not slip off during handling. For square cartons and pallet corners the straight L profile stays the better choice, and we supply both.

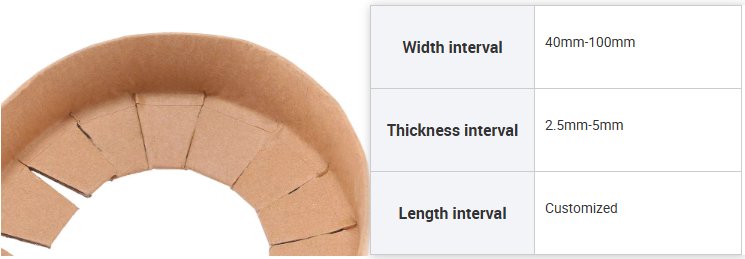

Ring Paper Corner Protector Specifications

MaterialKraft paper, roll paper
ProfileCircular ring, laminated L profile formed around a curve
Width40-100 mm, customizable
Thickness2.5-5 mm, customizable
LengthAny length, cut to order in meters
IncisionCut according to your requirement
ProcessAdhesion (ply lamination), eco-friendly glue
ColourWhite or kraft brown base, custom printing available
MOQ3,000 meters

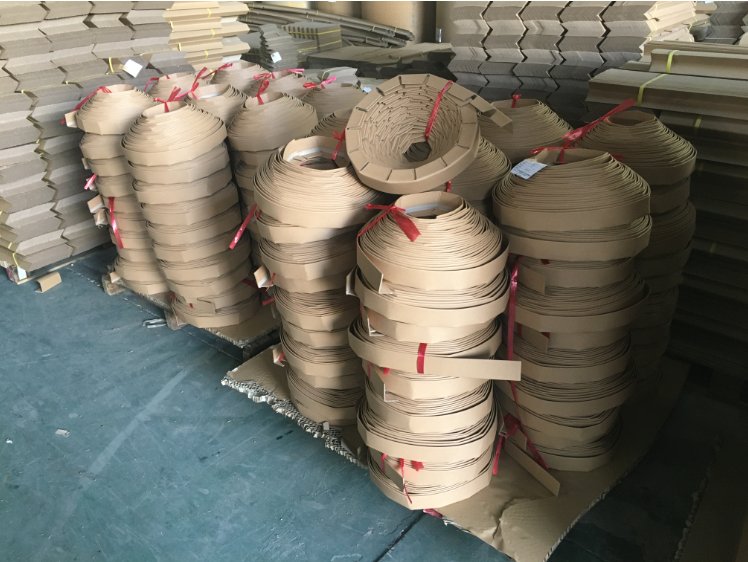

Daily output200,000 meters
Lead timeShipment within 7 days of deposit
OEM and ODMAvailable, including size, printing and packaging

How to Choose the Right Width and Thickness

Two numbers decide whether the protector actually holds: the width of the leg that touches the product, and the wall thickness that takes the strap load. As a working rule:

  • 40-60 mm width, 2.5-3 mm thickness - PP strapping on light cartons, paper reels and small coils up to roughly 300 kg.

  • 60-80 mm width, 3-4 mm thickness - PET strapping on standard steel or aluminium coils, and bundled profiles.

  • 80-100 mm width, 4-5 mm thickness - steel banding, heavy coils, and loads where the edge itself is thin or sharp.

These are starting points, not fixed rules. Send us the strap type, strap width and approximate load weight and we will confirm the specification that will not crush on the first handling. A wider leg always outperforms a thicker wall when the strap tension is high, because the load is spread over more paper.

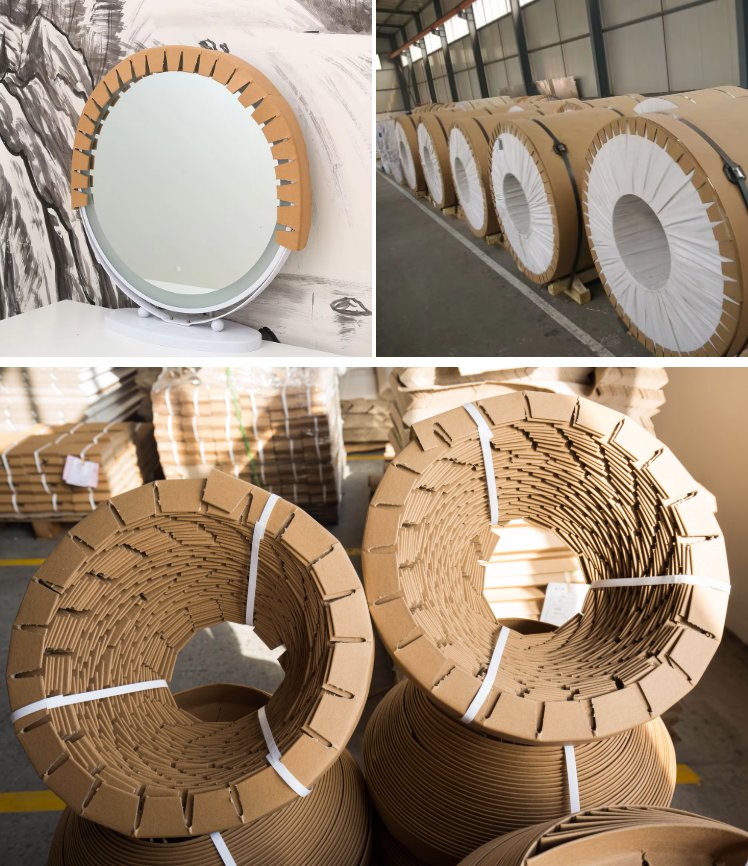

Typical Applications

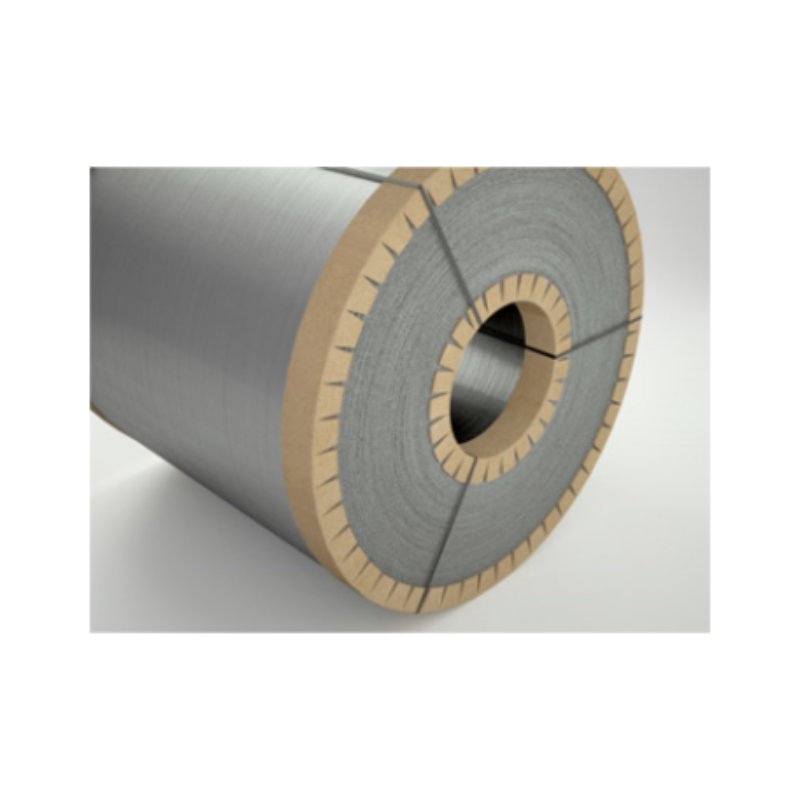

  • Steel coil and aluminium coil edge protection under steel or PET banding

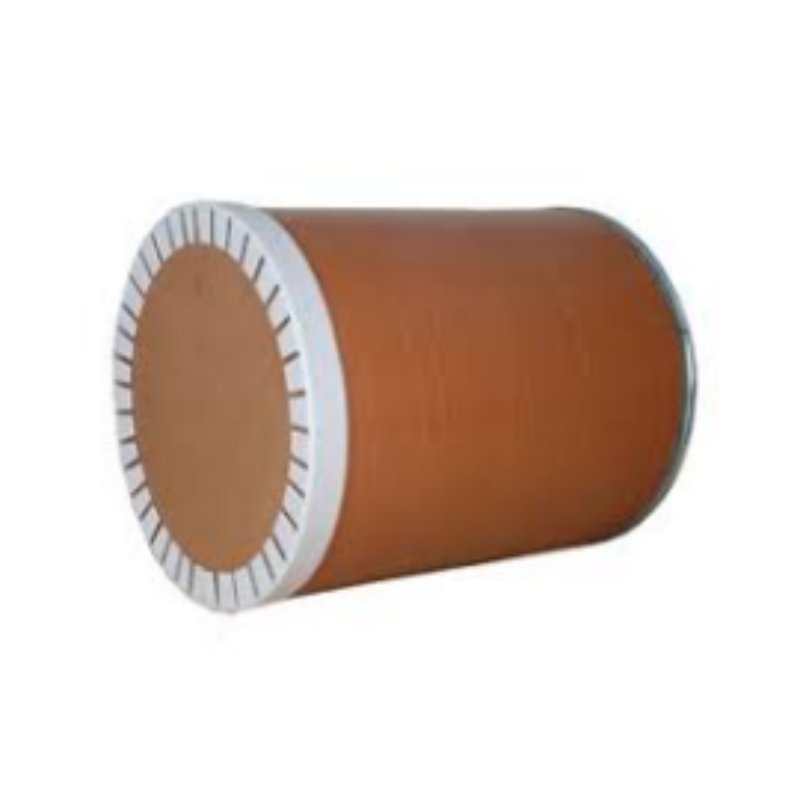

  • Paper reel and film roll rims during palletizing and container loading

  • Wire, cable and textile roll bundles

  • Pipe and tube bundles with exposed round ends

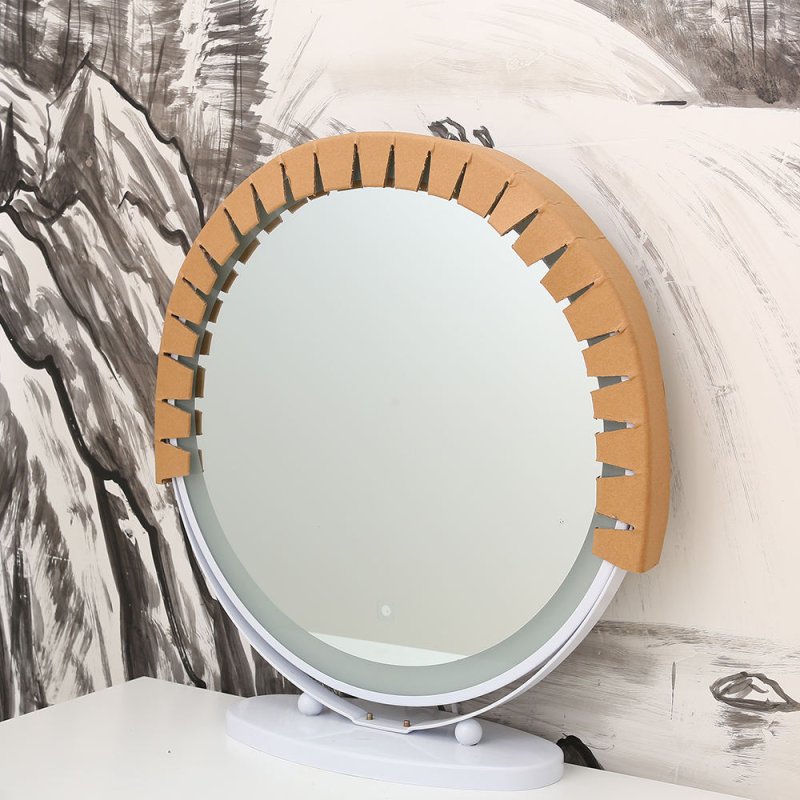

  • Round furniture components and machined cylindrical parts

  • Any export load where the receiver charges for damaged edges

Ring Paper Corner vs L-Shaped Paper Angle Board

PointRing paper cornerL-shaped angle board
Best fitCoils, reels, round and cylindrical loadsCartons, pallets, square and rectangular loads
Contact with productContinuous around the circumference, no gapsTwo flat faces, needs hand bending on curves
Risk on a curved edgeLow, the ring follows the curveBoard lifts off the product at the bend
UnitQuoted per meter, cut to your lengthQuoted per piece or per meter

Printing, Incision and Customization

Every ring paper corner protector is made to order, so the customization happens at the same stage as production rather than as an afterthought.

  • Printing - text and logo printed on a white or kraft brown base, for brand visibility on the coil or reel edge.

  • Width and thickness - any combination inside the 40-100 mm and 2.5-5 mm range, and the two legs can be specified separately.

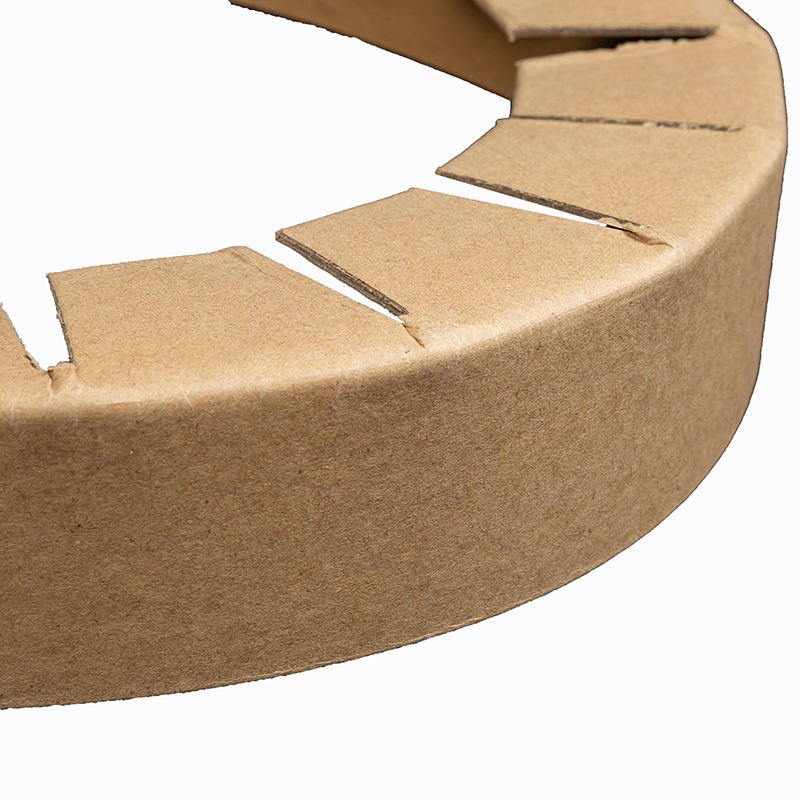

  • Incision - cut to your requirement, including pre-cut lengths or a slit that lets the ring open for fitting on site.

  • OEM and ODM - your artwork, your label, your packing specification.

Printing is applied to the paper surface, so a two-colour logo stays legible but will not match a coated carton for sharpness. If brand colour accuracy matters, ask for a printed sample before the production run.

Frequently Asked Questions

Q: What is a ring paper corner protector?
A: It is a circular kraft paper edge guard formed into a ring, used to protect coil rims, reel edges and other round loads from strap crush, cutting and scuffing during handling and transport.

Q: How long does production and shipment take?
A: We ship within 7 days of receiving the deposit. Printed or fully customized orders may need slightly longer, and we confirm the exact date when the order is placed.

Q: Do you offer samples for testing?
A: Yes, we provide samples. The sample itself is free and you cover the express cost, so you can test the width and thickness against your own strap before ordering.

Q: What information do you need to quote accurately?
A: Length, width, thickness and quantity, plus the strap type if you already know it. With those four numbers we return the best price for your specification.

Q: Can our own logo or label be printed?
A: Yes. After legal authorization of the trademark, your private logo or label can be printed on the protector and on the packaging, and we have supported OEM production for many years.

Q: Can the size and material be customized?
A: Yes. Shape, printing, material, thickness and size can all be customized, and our R and D team works from your drawing or your sample.

Q: Is the protector recyclable?
A: Yes. The product is paper with eco-friendly glue, so it recycles with normal waste paper and needs no separation step.

Q: What is the minimum order quantity?
A: 3,000 meters, with a daily output of 200,000 meters, so repeat orders and large coil programs are covered without a second supplier.

Request a Ring Paper Corner Protector Quote

Send one line per specification - width, thickness, cut length, quantity in meters, print or plain, and destination port - and we will return the price, the packing plan and the delivery date. Email mona@hengnicepacking.com with the subject line Ring paper corner protector plus your coil size.
