Locking Paper Corner Protector for Cartons

PRODUCT DETAILS

Locking paper corner protector is an L-profile kraft corner with interlocking tabs cut into the legs, so the board locks onto the carton corner and onto itself instead of relying on tape or a strap to stay in position. Width 35-70 mm, thickness 2.5-5 mm, any length, and the tab pattern is a decision made at the die, not an afterthought. Packing lines choose it when a plain angle board keeps sliding down the box.

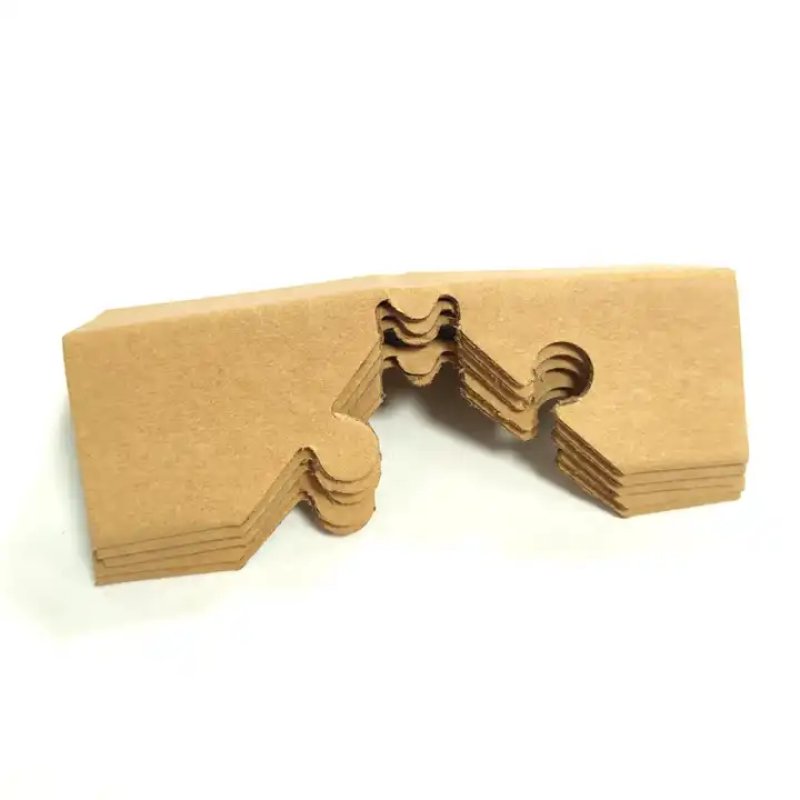

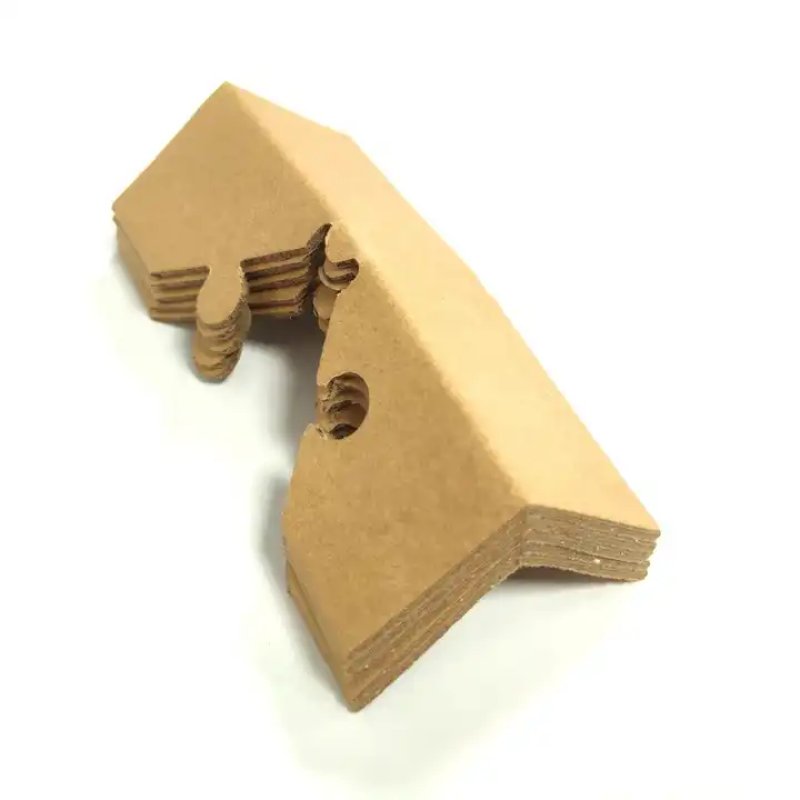

locking paper corner protector with interlocking tabs

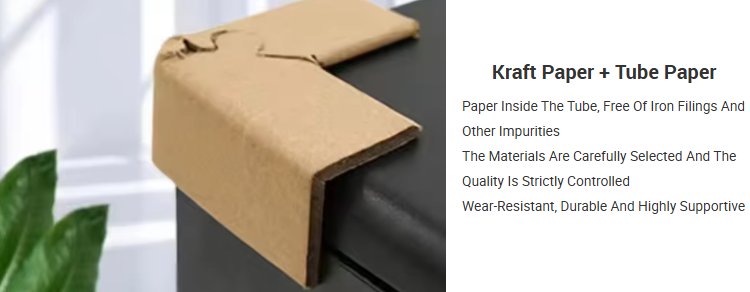

kraft paper and tube paper used for locking paper corner protector

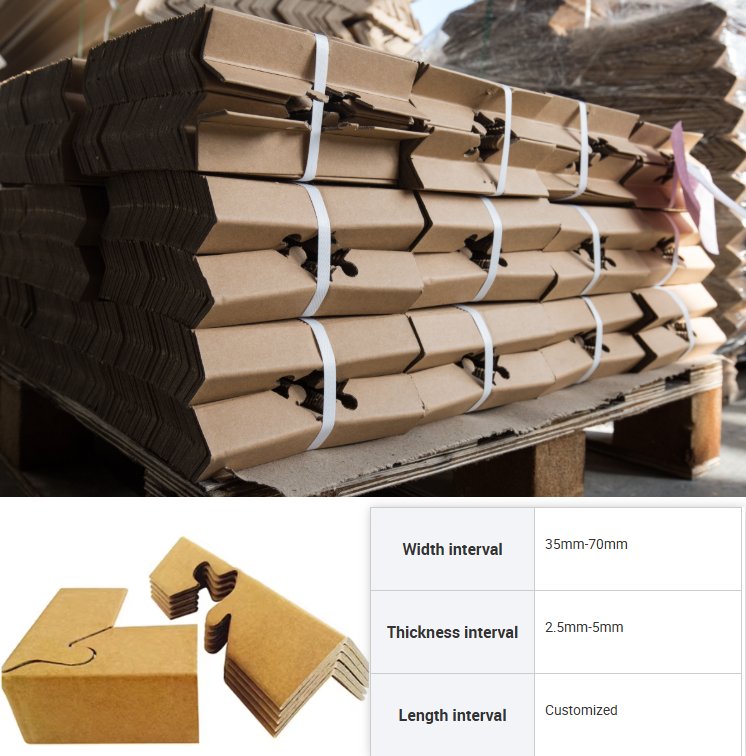

bundled locking paper corner protectors packed on a pallet

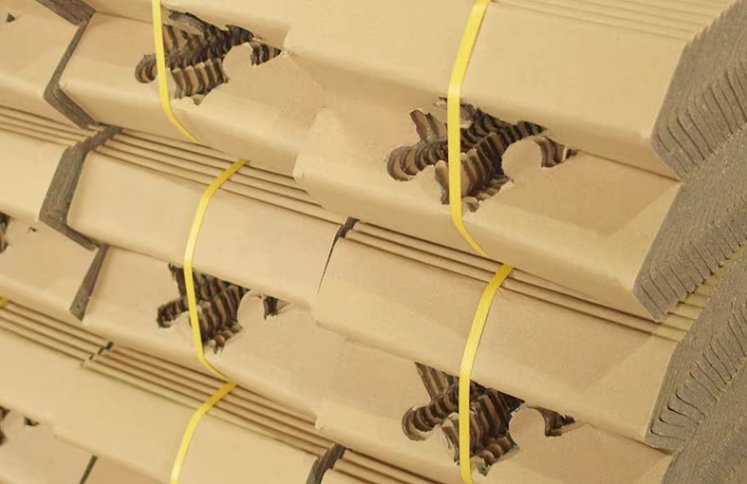

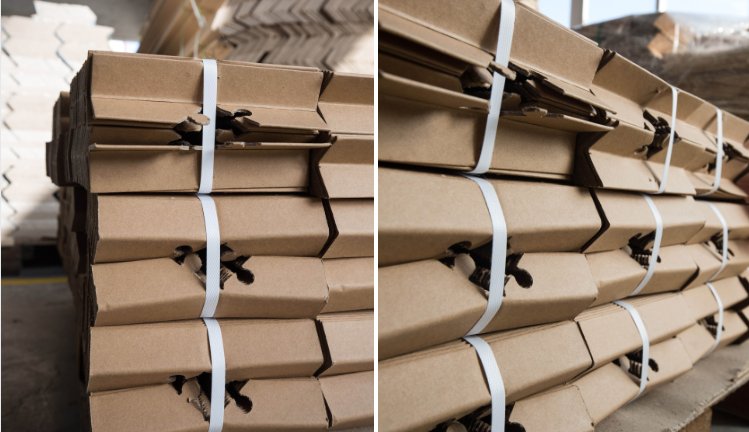

locking paper corner protectors strapped and stacked for shipment

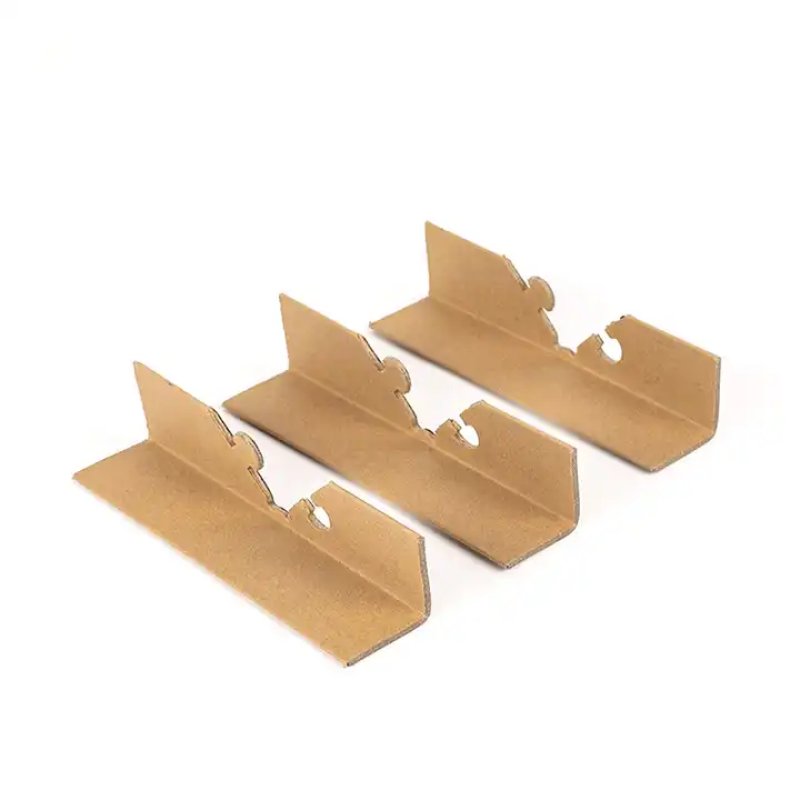

locking paper corner protectors stacked in the warehouse ready for export

What Makes a Paper Corner Protector Locking?

A locking paper corner protector is still a laminated kraft angle board, but its legs carry a cut pattern: tabs on one face, matching slots on the other, or a snap-lock wing that folds back on itself. When the board is closed around a corner, the tab enters the slot and the profile holds its own shape. Nothing is added, nothing is thrown away, and the lock is paper.

That single change solves the most common complaint about plain angle board. A standard L profile sits on the corner and stays there only while the strap is tensioned; between the packing station and the pallet it slides, drops, and gets kicked under a conveyor. A locking version grips the carton while the operator is still holding it, so one person can position four corners without a second pair of hands.

Three ways the lock is cut

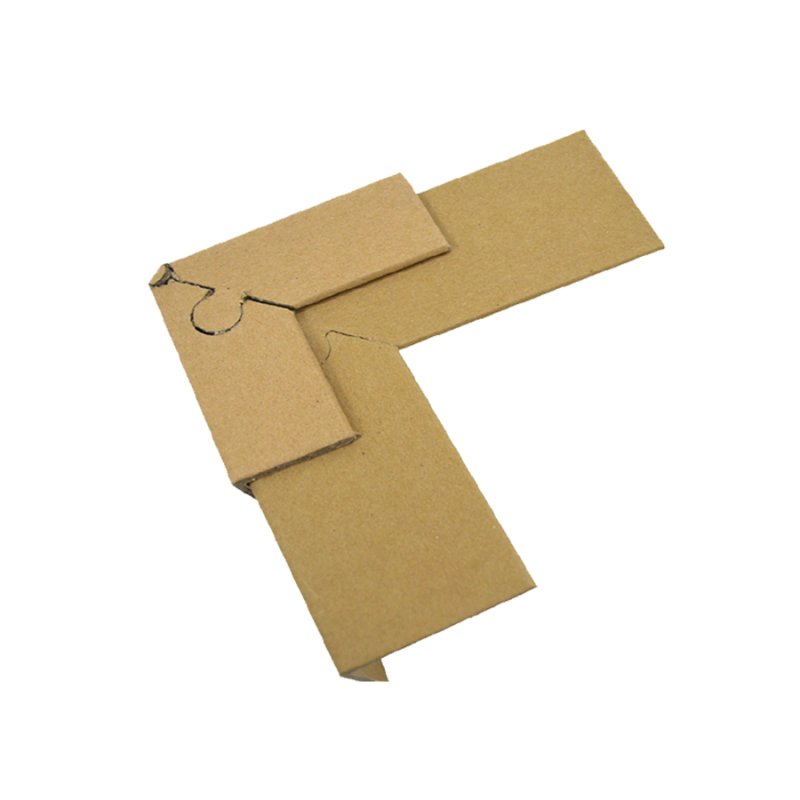

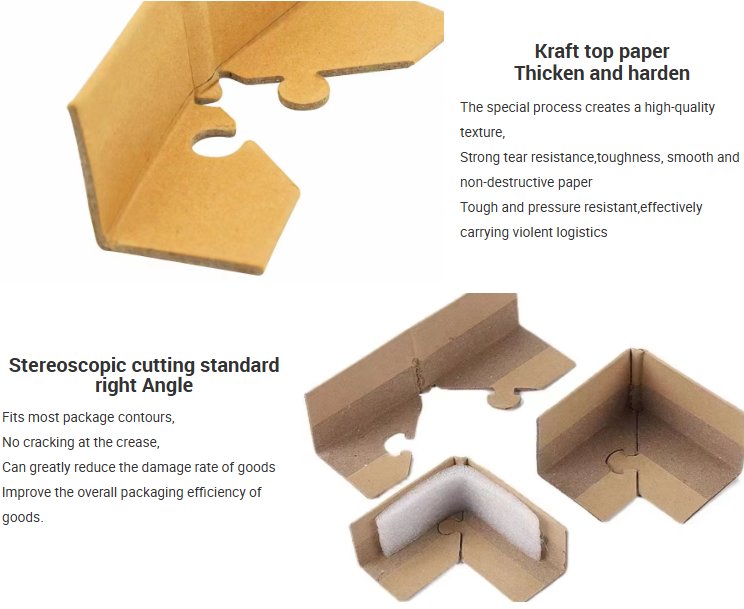

The tab-and-slot lock is the most common: two tabs on the short leg, two slots on the long leg, pressed together by hand. The self-locking wing folds the end of the board back onto itself, which thickens the corner and doubles the protection exactly where the strap crosses. The interlocking edge cuts a castellated pattern along the length, so two boards lock into each other and form a longer edge guard without glue or tape.

Locking Paper Corner Protector Specifications

ProfileL-shaped, 90 degree, with locking tabs or slots
MaterialKraft paper, roll paper, eco-friendly glue
Leg width35-70 mm, customizable
Thickness2.5-5 mm, customizable
LengthAny length, cut to order
Lock typeTab and slot, self-locking wing, interlocking edge
IncisionCut to your requirement, die per order
Colour and printWhite or kraft brown, logo and text printable
MOQ500 meters
Daily output200,000 meters
Lead timeShipment within 7 days of deposit
OEM and ODMAvailable, including tab design and print

Locking or Plain Angle Board: Which Do You Need?

PointLocking protectorPlain L profile
Stays on the cornerYes, locks without tapeOnly while strapped
Setup costOne die per tab patternNone
Labour per palletLower, one operator does four cornersHigher, needs tape or a second handler
Best forRepeat carton sizes, automated packing linesMixed loads, one-off shipments

The economics are simple. If you pack the same carton size every day, the die pays for itself in saved tape and saved seconds. If every pallet is a different shape, a plain board does the same job with no setup.

How to Specify a Locking Paper Corner Protector

  1. Leg width - measure the two faces you want covered. 35-50 mm covers most export cartons, 50-70 mm suits appliances and furniture panels where the corner takes the strap.
  2. Thickness - 2.5-3 mm for PP strapping on light cartons, 3-4 mm for PET and general export loads, 4-5 mm for steel banding or heavy appliances.
  3. Length - usually the carton height plus 20-40 mm, so the protector stands above the top edge and takes the strap before the carton does.
  4. Lock pattern - send a photo of the corner and we propose a tab layout. Tabs too close to the fold will tear in transit, so the distance from the bend is set by the die, not by the buyer.

Worked example: 600 x 400 x 400 mm export cartons, two PET straps per pallet, 12 cartons per pallet. Specification: 50 mm legs, 3 mm thick, cut 450 mm, tab-and-slot lock, natural kraft, unprinted, 5,000 meters. That is a complete order instruction.

Where Locking Corner Protectors Are Used

  • Export cartons - four corners locked before the pallet is strapped, so nothing shifts during stretch wrapping
  • Appliance packaging - refrigerator, washing machine and TV corners where the strap crosses a thin edge
  • Furniture and flat-pack - locking tabs hold the board while panels are stacked and banded
  • Automated packing lines - the lock lets a single operator place four corners in one pass
  • Reusable crates and totes - locking boards survive repeated handling better than taped-on profiles
  • Printing and paper reels - interlocking edges join boards into a continuous guard along a long edge

Printing and Custom Tab Design

Printing runs in one or two colours on a white or kraft base: company logo, carton size, handling icons or a QR code. Because the die is cut for your order anyway, the tab layout and the print can be developed together, and a printed board that locks is a stronger brand signal than a plain one that falls off.

Two things to send with an enquiry: the carton or panel dimensions, and a photo of how the corner is currently protected. From those we return a tab drawing and a sample before the production run, so a die error never reaches a container.

MOQ, Lead Time and Packing

The minimum order is 500 meters, low enough for a first trial on one carton size, and the line runs 200,000 meters a day for repeat programs. Orders ship in bundles or palletized cartons, banded and wrapped, normally within 7 days of deposit. Printed or new-die runs are confirmed against the artwork and die approval date.

Frequently Asked Questions

Q: What is a locking paper corner protector?
A: It is a kraft L-profile with tabs and slots cut into the legs, so the board locks onto a carton corner and holds itself in place without tape or a tensioned strap.

Q: Does the lock really hold without tape?
A: Yes, once the tab is pressed into the slot the profile closes on the corner and stays. It is not a permanent joint, but it survives normal handling between the packing station and the pallet.

Q: What leg width and thickness should I order?
A: 35-50 mm legs with 3 mm board covers most export cartons; 50-70 mm legs with 4-5 mm board suits appliances, furniture panels and steel banding.

Q: Is a locking corner recyclable?
A: Yes. It is kraft paper with eco-friendly glue and no plastic insert, so it recycles with the cartons it protects.

Q: Can I print my logo on a locking protector?
A: Yes, one or two colours on white or kraft base. Send vector artwork and we return a proof with the tab layout.

Q: What is the minimum order?
A: 500 meters. A new tab die is a one-off cost, quoted with the first order.

Q: Do you supply samples?
A: Yes. We cut samples of your tab pattern and you cover the express cost, so the lock can be tested on your own carton.

Q: How fast can you ship?
A: Within 7 days of deposit for standard specifications; new die or printed runs are confirmed at approval.

Request a Locking Paper Corner Protector Quote

Send the carton or panel dimensions, the leg width you want, the strap type and the quantity in meters. We return the price, a tab drawing and the delivery date. Email mona@hengnicepacking.com with the subject line locking paper corner protector plus your carton size.
