Furniture arrives damaged at the edges far more often than at the faces. A cabinet door takes a knock on its corner, a table top lands on its rim, a flat-pack panel slides against the carton wall and the veneer lifts. Edge protectors for furniture exist to intercept exactly those three contacts, and the specification that works is decided by which of them your product is exposed to.
Three furniture types, three different exposures

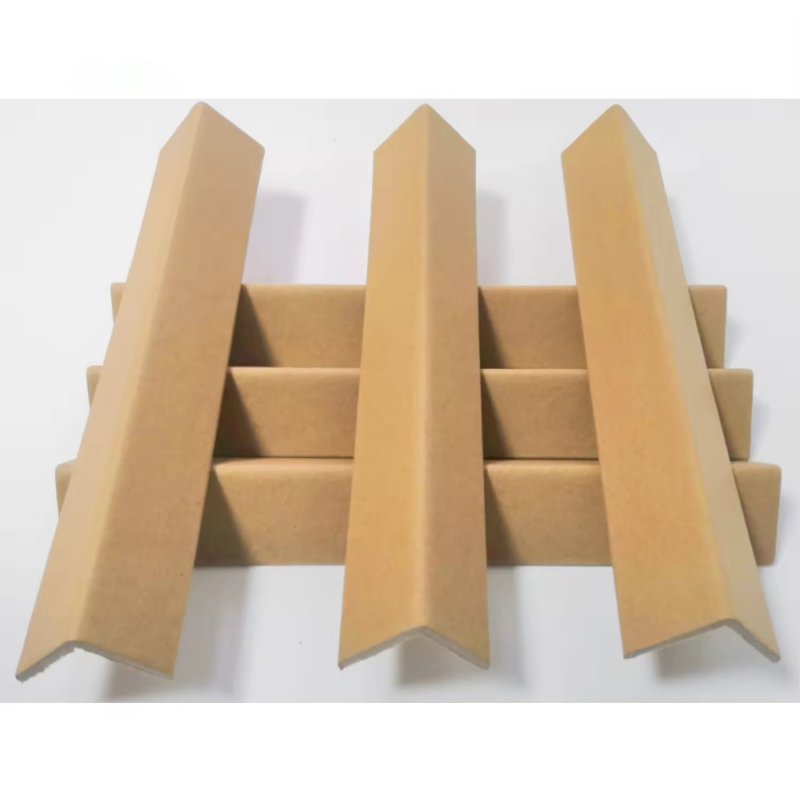

Flat-pack and RTA. Panels travel stacked and banded. The risk is the outer panel edge rubbing against the carton and the band marking the face. A 3 mm L profile with a 40-50 mm leg covers both the edge and the band contact area.
Upholstered goods. The frame is protected but the fabric is not, and a paper board rubbing on fabric for 2,000 km will polish it. Here the board has to be smooth-faced and the leg kept short enough that it does not press into the upholstery under banding.
Solid timber and veneered panels. The veneer edge is the fragile part. Once it lifts, the piece cannot be repaired invisibly, so the board must cover the full thickness of the panel plus enough face to keep the band off the veneer line.
The finish matters more than the thickness
On a dark walnut or a white lacquer finish, a kraft board can leave a shadow mark where it has pressed against the surface for weeks in a container. Two practical answers: specify a white-top board where the furniture is light, and keep the board dry — paper above 10 percent moisture will transfer a mark under load. Neither costs much; both are decided at the order, not at the packing line.
Choosing the length
Furniture edges are usually straight and long, which changes the calculation compared with cartons. A wardrobe side panel of 2,000 mm needs a board that runs the full height, or two boards that overlap at the middle. A short board placed only at the corner protects the corner and leaves the middle of the edge exposed to the carton wall, which is where scuffing happens on a long panel.
What the board does not do
It does not stop a forklift tine. It does not replace corner blocks on a heavy item, and it does not compensate for a carton that is too thin for the weight inside. Buyers who expect an angle board to solve impact damage usually need a corner block or a honeycomb pad in addition, and it is cheaper to find that out at the quotation stage than at the claim stage.
Fitting it on a furniture line

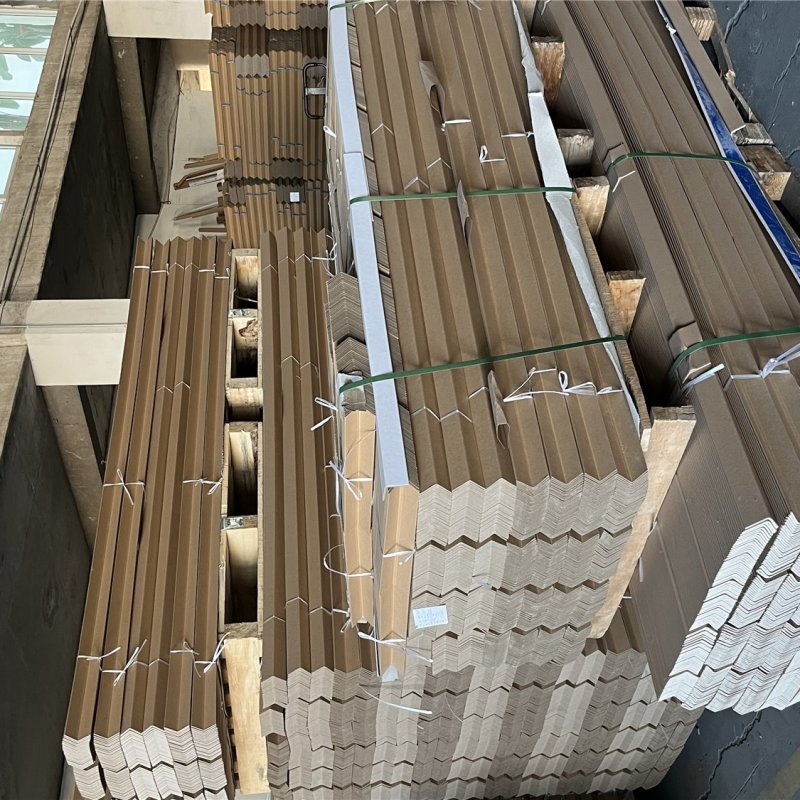

Two people, no tools: one holds the board over the edge, the other runs the band or wraps the film. Boards are normally supplied cut to the panel length so nothing is trimmed on the line. Where a line packs several panel lengths, supply the boards in matching bundles with the length printed on the outside, which removes a sorting step.
Questions buyers ask
Can the board be printed with our brand? Yes, one or two colours on natural kraft or white top. Furniture brands usually print a size marking and a handling icon rather than a large logo, because the board is visible when the carton is opened.
Will a paper board scratch a lacquered surface? Not if it is dry and the surface is smooth. Rough recycled paper can mark a high-gloss finish; specify a smooth kraft facing in that case.
What leg length for a 25 mm panel? 40 mm is the usual choice: it covers the edge and a band of the face, and it still fits under standard banding without overlapping the next panel.
Is it recyclable at the destination? Yes, paper and starch adhesive only, so it goes into the same bale as the carton.
What is the lead time? 7-15 working days after approval, with samples in 3-5 working days.
Tell us the furniture type, the panel thickness and the edge lengths you pack, and we will specify the profile against your line. Email mona@hengnicepacking.com.
