Bent paper corner protector is a kraft paper profile folded at a set angle before it leaves the factory, so it follows the real shape of a corner instead of forcing a 90 degree board onto it. Width 35-70 mm, thickness 2.5-5 mm, bend angle built to your drawing, any length. Buyers order it when the load is chamfered, tapered, curved, or when one board has to wrap two faces at once.



Why Bend the Profile at All?
A standard angle board is formed at 90 degrees because most cartons are square. Real freight is not. A chamfered crate corner, a tapered machine housing, a stack of mouldings with a rounded edge, a coil cradle with an angled shoulder - on all of these a 90 degree board touches at two points and leaves the rest of the edge bare.
A bent paper corner protector is formed to the angle the corner actually has. The paper sits flat on both faces, the strap presses evenly instead of pinching one line, and the profile does not spring back open between the packing station and the pallet. The bend is set while the adhesive is still flexible, then the shape is held until the plies cure, so it stays where it was formed.
Bent, folding and pre-bent: the same family
Buyers search for this product under several names - bent paper edge protector, folding paper edge protector, bendable paper edge protector, flexible paper edge protector, pre-bent angle board. They describe one idea: the profile is not locked at 90 degrees. Some versions are formed to a fixed custom angle at the factory; others are scored so the packer can bend them by hand on site. If your corner angle changes from order to order, ask for the hand-bendable version. If every pallet is identical, a factory-set angle gives a tighter fit and a faster packing line.
Bent Paper Corner Protector Specifications
| Profile | L profile, pre-bent to a custom angle |
| Bend angle | Made to your drawing, 90 degree standard |

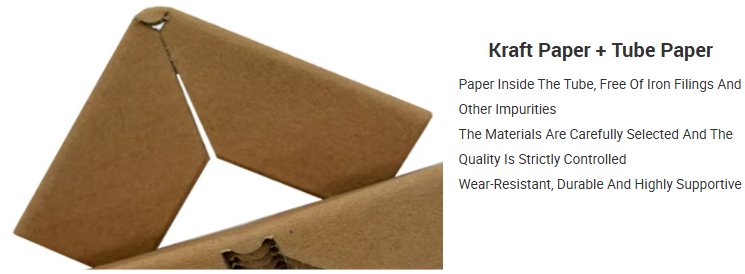

| Material | Kraft paper, roll paper, eco-friendly glue |

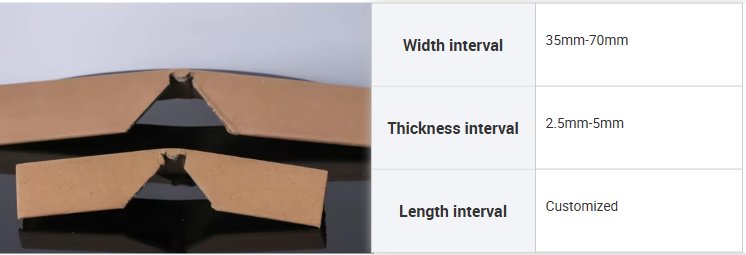

| Leg width | 35-70 mm, customizable |
| Thickness | 2.5-5 mm, customizable |
| Length | Any length, cut to order |

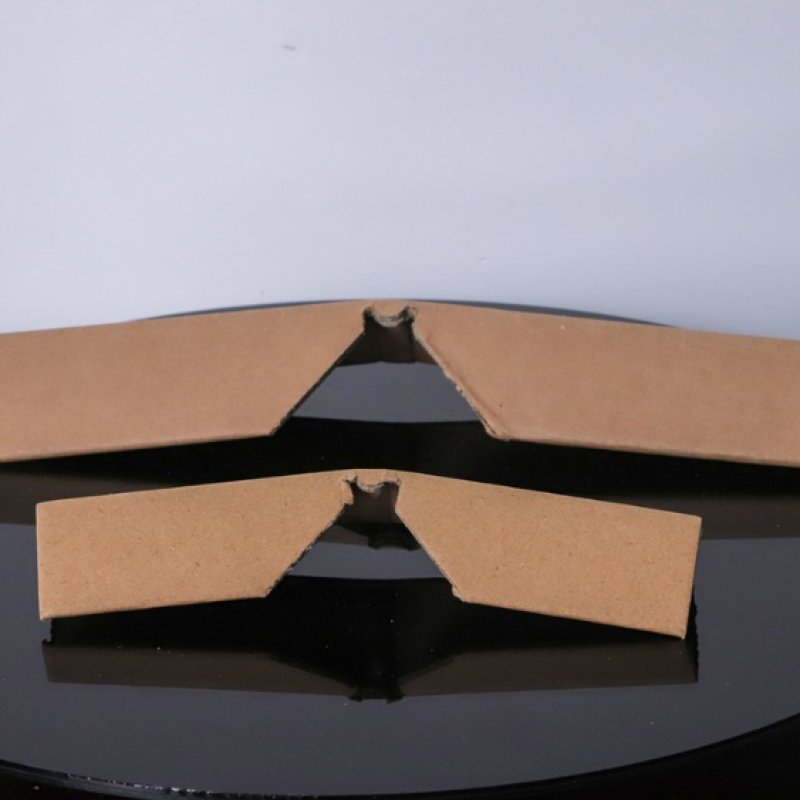

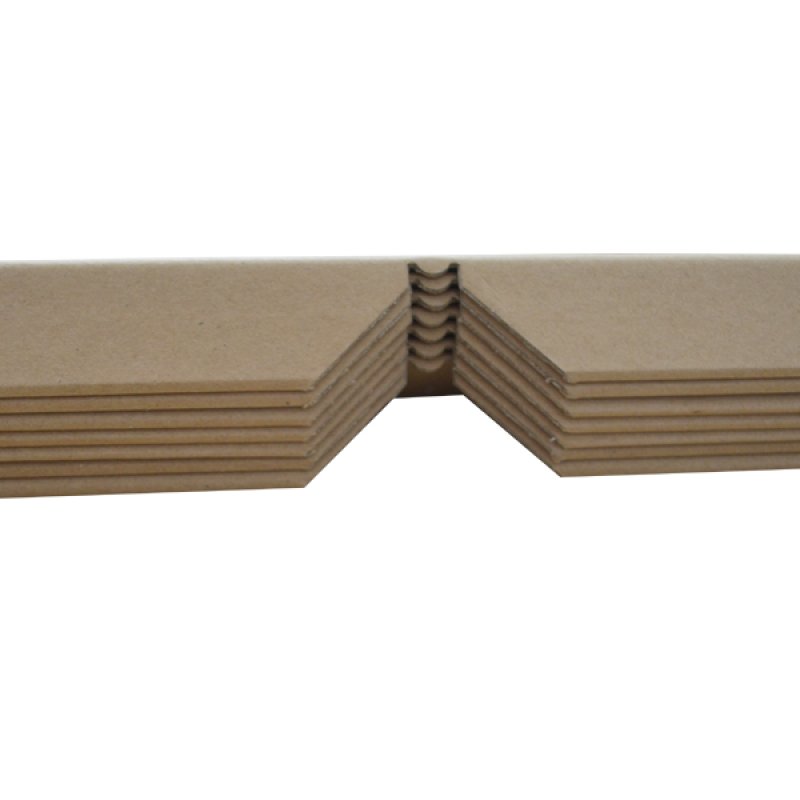

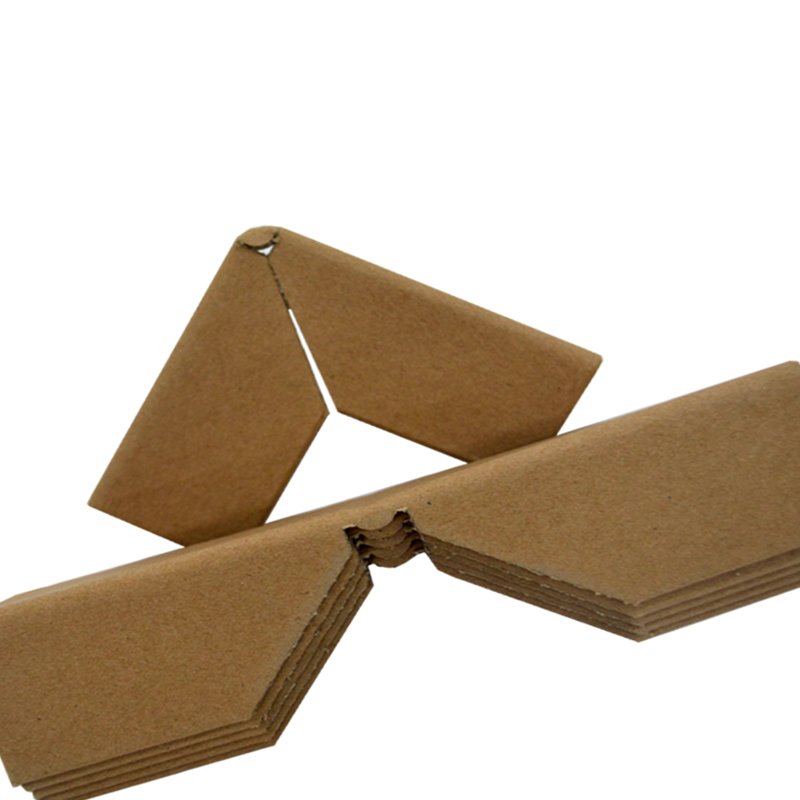

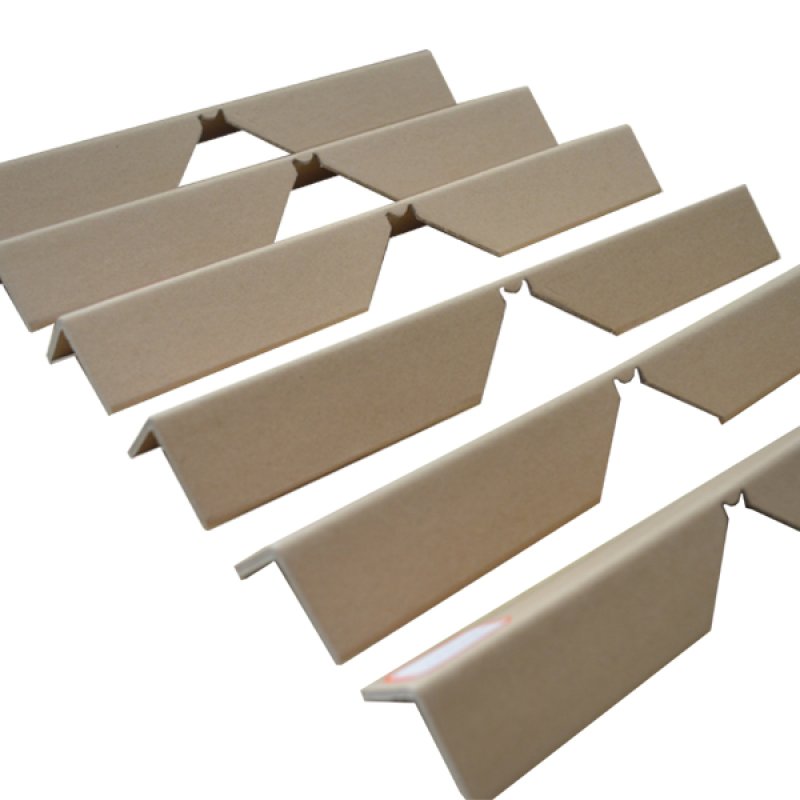

| Incision | Cut to your requirement, scored for hand bending on request |
| Colour and print | White or kraft brown, logo and text printable |
| MOQ | 500 meters |
| Daily output | 200,000 meters |
| Lead time | Shipment within 7 days of deposit |
| OEM and ODM | Available, including angle, print and packing |
How the Bend Angle Changes the Specification
Angle and leg width work together. A tight angle concentrates the strap load on a narrow strip of paper, so a profile bent to 60 degrees usually needs 10-15 mm more leg width or one step more thickness than the same corner at 90 degrees. A shallow angle, around 120-135 degrees, spreads the same load over a longer face and can often run thinner.
Two practical limits worth knowing before you order: a bend sharper than about 45 degrees needs a score line, or the paper will delaminate on the outside of the fold; and a leg shorter than 30 mm is difficult to keep flat on a curved or tapered load. If your corner is tighter or shorter than that, send a photo and we will propose a two-piece build instead.
How to Measure for a Bent Protector
- Angle - put a protractor or a phone angle app on the corner itself, not on the drawing. Freight corners are rarely the 90 degrees they are drawn at.
- Leg A and leg B - measure each face separately. Bent profiles are often asymmetric, and the numbers are not interchangeable.
- Thickness - 2.5-3 mm for PP strapping, 3-4 mm for PET and general export, 4-5 mm for steel banding or loads above about one tonne.
- Length - the height of the load plus 20-40 mm, so the board stands proud of the top edge.
Worked example: a tapered machine housing with a 70 degree shoulder, one PET strap per pallet. Specification: legs 60 mm and 45 mm, 4 mm thick, pre-bent to 70 degrees, cut 1,100 mm, natural kraft, unprinted, 800 meters. That is enough detail to quote and to cut a die.
Where Bent Profiles Earn Their Cost
- Tapered and chamfered crates - the board follows the shoulder instead of bridging it
- Mouldings and trim - rounded or angled edges that a square board cannot grip
- Coil cradles and wedges - angled shoulders take the strap at an angle, not straight down
- Furniture with shaped corners - chairs, table tops and cabinet ends that are not square
- Machinery and equipment - housings with folded sheet metal edges
- Mixed export loads - one hand-bendable board covers several corner shapes instead of stocking three SKUs
Printing, Scoring and Custom Build
Printing runs in one or two colours on white or kraft base, and because the profile is already custom, the print and the score line are set in the same pass: logo on the long leg, size marking on the short one, handling icons where the packer looks. Scores can be single or double, and a double score lets the same board bend either way, which is useful when a packing line handles mirrored corners.
Send the angle, both leg widths, thickness, cut length and quantity, and we return a drawing plus a sample before the run. A bend that looks right on paper and wrong on the load is the most common cause of a rejected first order, so the sample stage is not optional on a custom angle.
Frequently Asked Questions
Q: What is a bent paper corner protector?
A: It is a laminated kraft L profile formed to a specific angle, so it fits chamfered, tapered or rounded corners instead of only 90 degree ones.
Q: Can the angle be customized?
A: Yes. Any angle from a sharp fold to a shallow 135 degrees can be formed, and the angle is set from your drawing or a photo of the corner.
Q: Can I bend it by hand on site?
A: Yes, if you ask for a scored version. A single or double score lets the packer adjust the angle, which suits lines that handle mixed loads.
Q: Will a bent profile still be strong at the fold?
A: Yes, provided the bend is scored and the thickness matches the strap. A sharp unscored fold is what causes delamination, which is why we set the score before forming.
Q: What thickness do I need for steel strapping?
A: 4-5 mm. For PET or PP strapping on normal export loads, 3-4 mm is enough.
Q: Is it recyclable?
A: Yes, kraft paper with eco-friendly glue and no plastic component, so it goes into the same paper waste stream as the cartons.
Q: Can you print our logo?
A: Yes, one or two colours on white or kraft base, after legal authorization of the trademark.
Q: What is the MOQ and lead time?
A: 500 meters, with shipment within 7 days of deposit for standard specifications.
Request a Bent Paper Corner Protector Quote
Send the angle, both leg widths, thickness, cut length and quantity in meters. A photo of the corner saves a round of questions. Email mona@hengnicepacking.com with the subject line bent paper corner protector plus your angle.
